KL - Shift Indicator Light (SIL)
>>
KL9 - Check SIL Dimmer Relay For Internal Short to Ground
KL9 - Check SIL Dimmer Relay For Internal Short to Ground

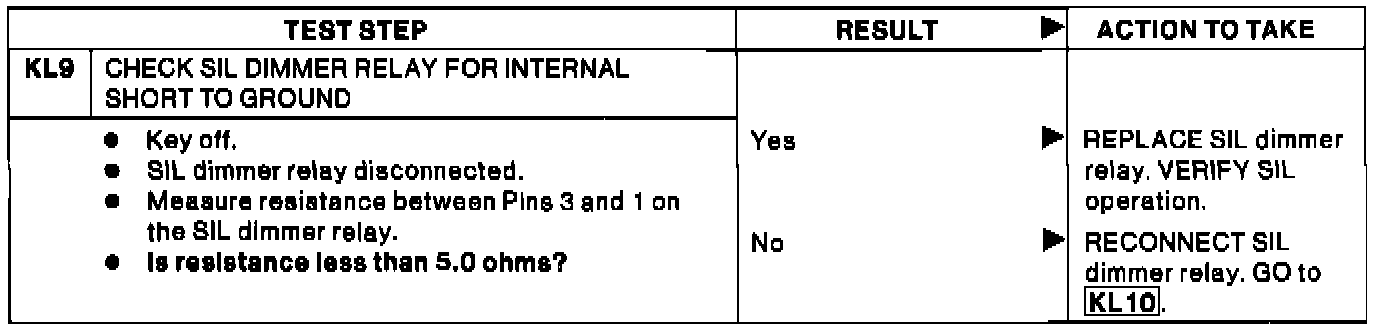

Pinpoint Test KL9:
