Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> KE - Idle Speed Control >> KE5 - Check For Internal Short to ISC Solenoid Case

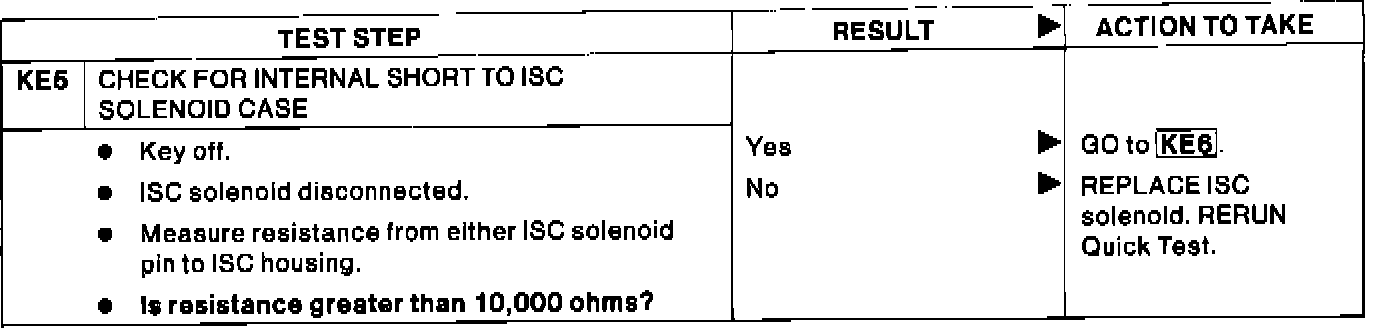

KE5 - Check For Internal Short to ISC Solenoid Case

Pinpoint Test KE5:
