Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> KB - Canister Purge (CANP) Valve >> KB4 - Check CANP Valve For Vacuum Leaks

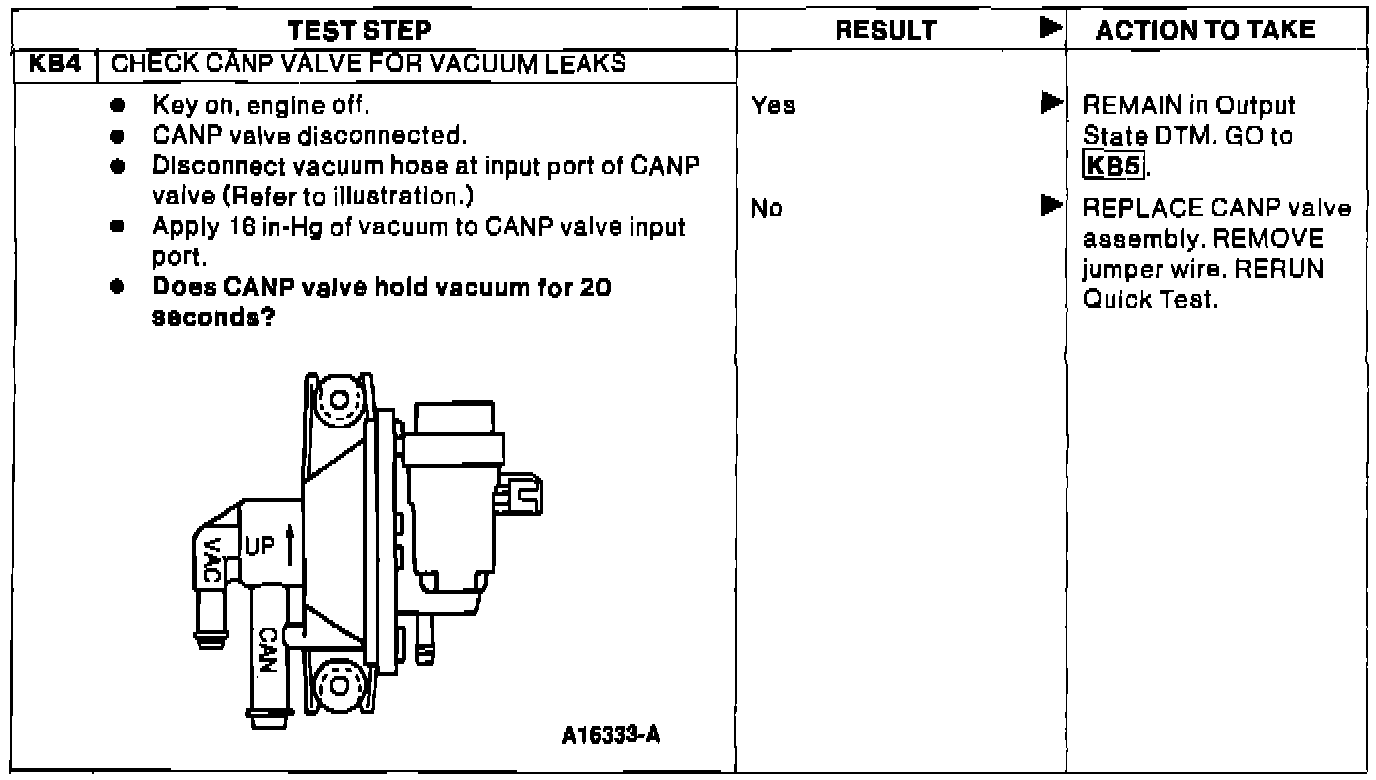

KB4 - Check CANP Valve For Vacuum Leaks

Pinpoint Test KB4:
