Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> J - Fuel Pump Circuit >> J3 - Check Fuel Pump Circuit For Short to Power

J3 - Check Fuel Pump Circuit For Short to Power

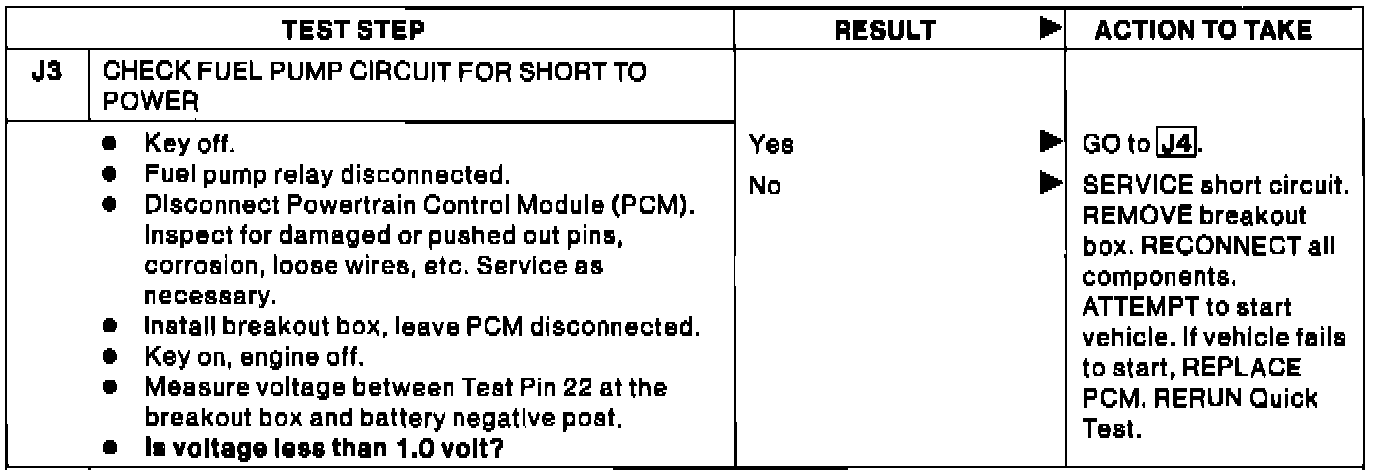

Pinpoint Test J3:
