Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> J - Fuel Pump Circuit >> J21 - Check For B(+) to Fuel Pump Relay

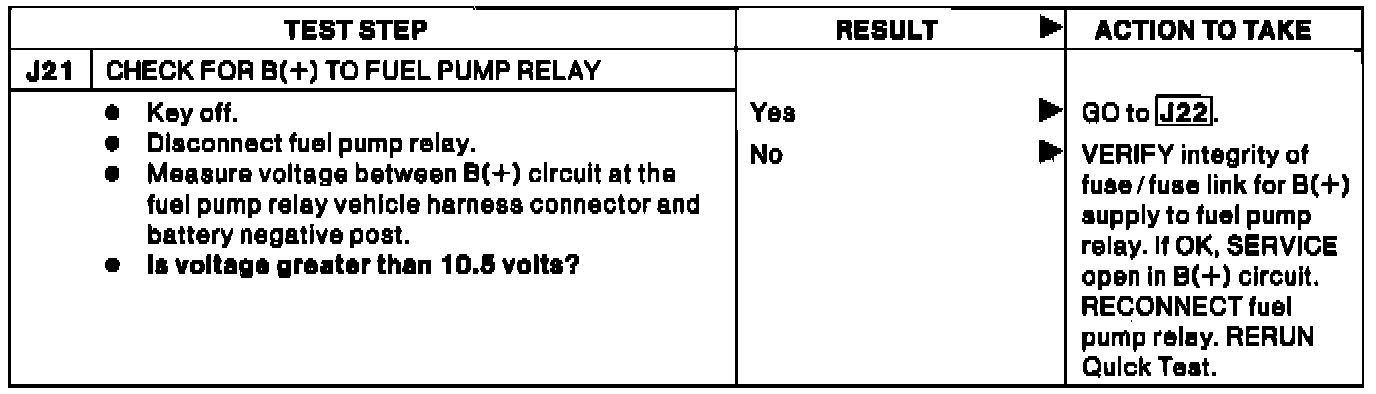

J21 - Check For B(+) to Fuel Pump Relay

Pinpoint Test J21:
