Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> J - Fuel Pump Circuit >> J15 - Check Inertia Fuel Shutoff (IFS) Switch

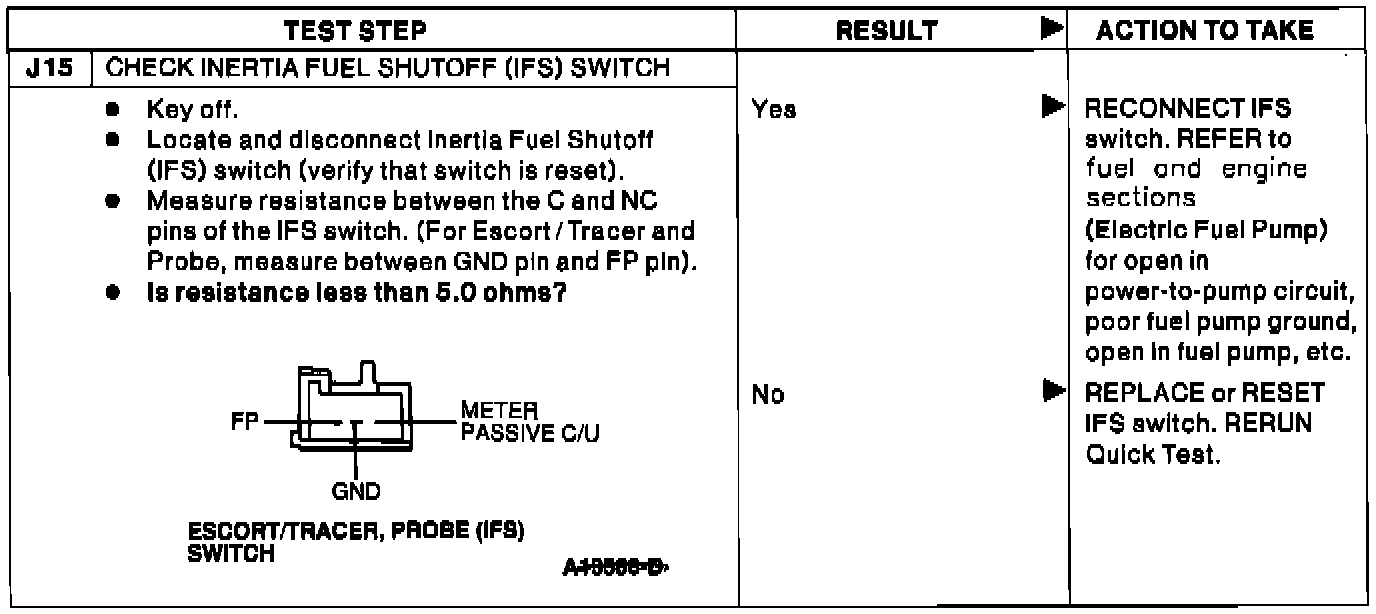

J15 - Check Inertia Fuel Shutoff (IFS) Switch

Pinpoint Test J15:
