Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> J - Fuel Pump Circuit >> J12 - Check For Fuel Pump Relay Always Closed

J12 - Check For Fuel Pump Relay Always Closed

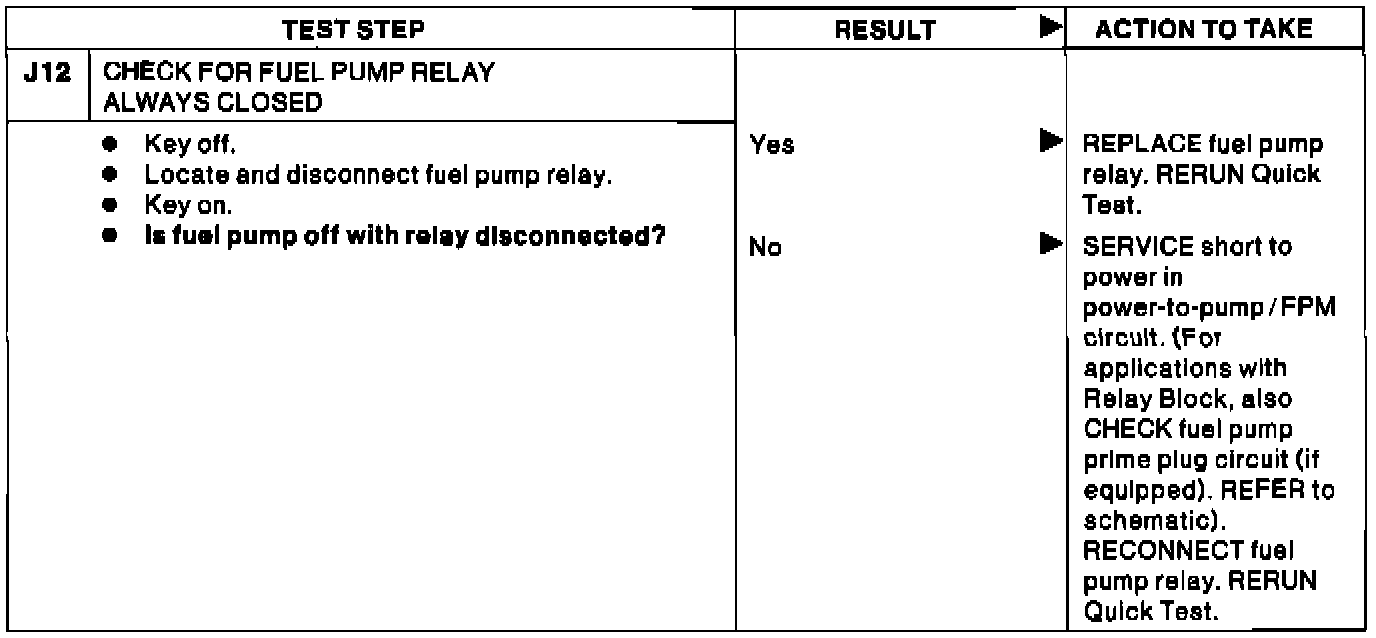

Pinpoint Test J12:
