Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> HA - Adaptive Fuel >> HA4 - Check MAP/BARO Frequency

HA4 - Check MAP/BARO Frequency

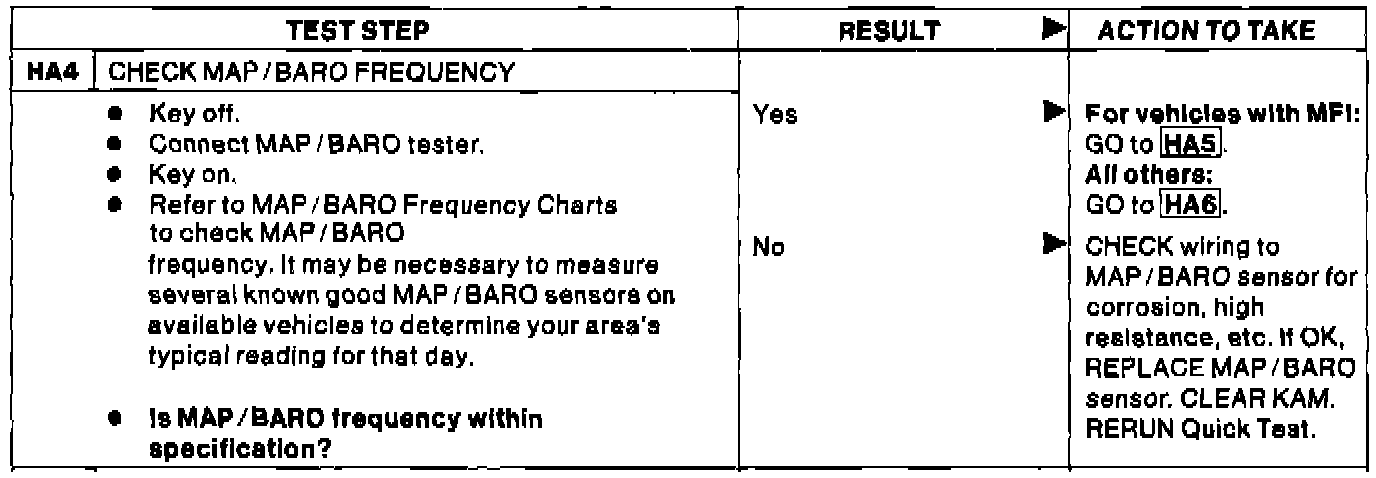

Pinpoint Test HA4:
