Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> H - Fuel Control >> H30 - HEGO Sensor Check

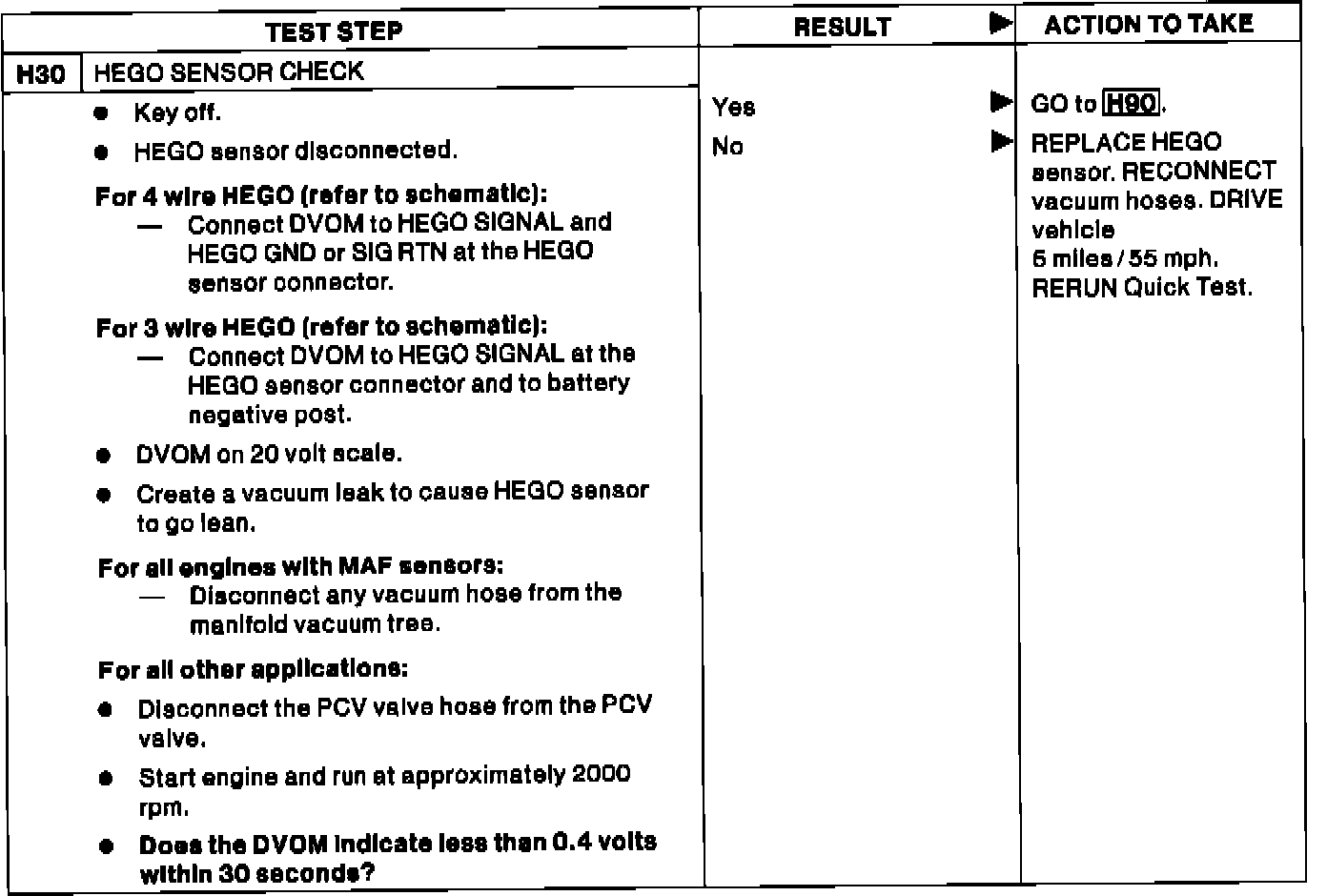

H30 - HEGO Sensor Check

Pinpoint Test H30:
