Mercury
>>
1993
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
H - Fuel Control
>>

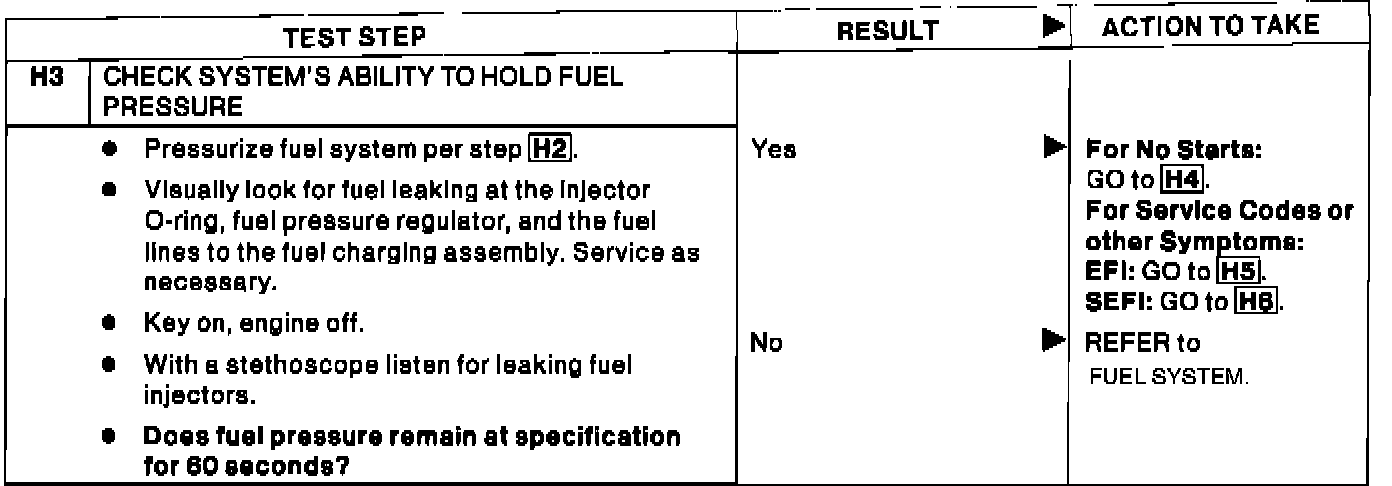

H3 - Check Systems Ability to Hold Fuel Pressure
H3 - Check Systems Ability to Hold Fuel Pressure
Pinpoint Test H3:
