FD - Brake On/Off (BOO) Switch
>>
FD7 - Check For Short to Power In Shiftlock Actuator
FD7 - Check For Short to Power In Shiftlock Actuator

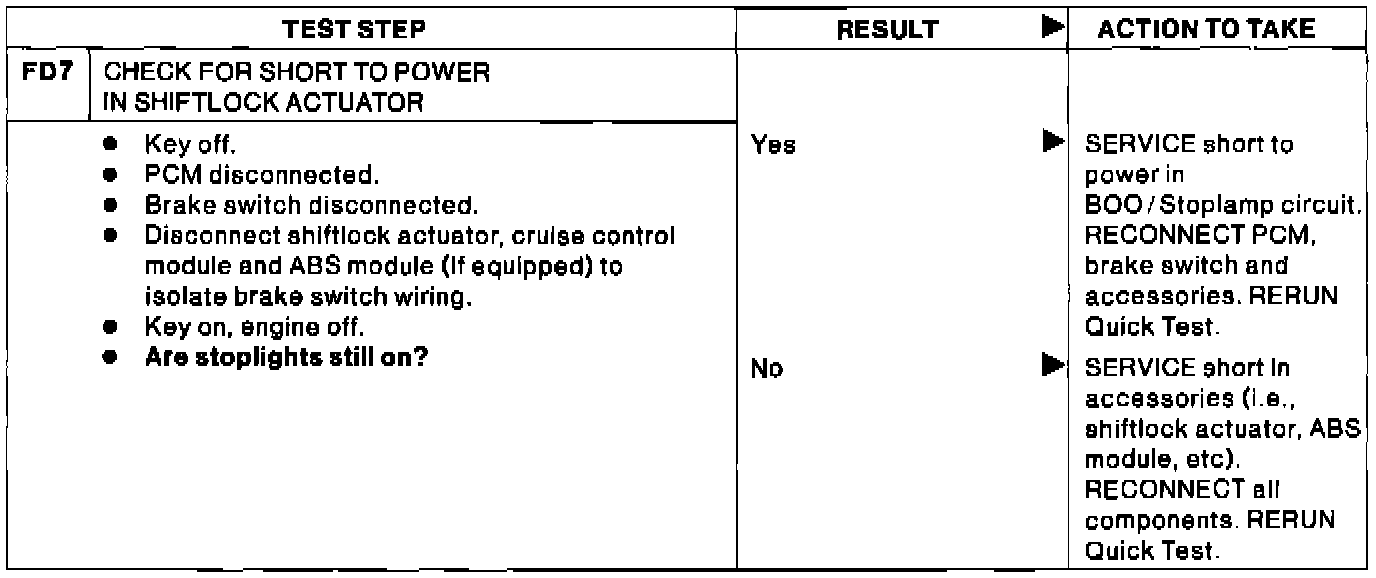

Pinpoint Test FD7:
