DL - PFE/DPFE Sensor; EVR Solenoid Testing
>>

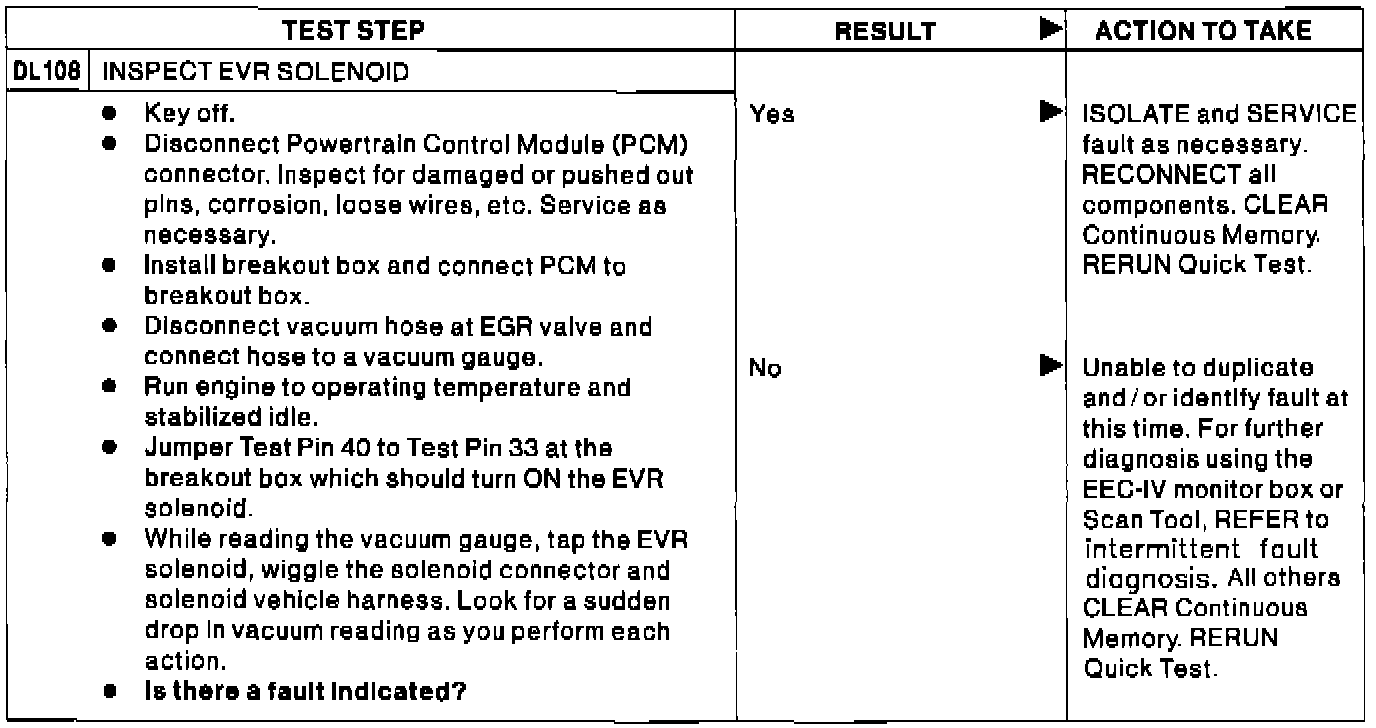

DL108 - Inspect EVR Solenoid
DL108 - Inspect EVR Solenoid
Pinpoint Test DL108:
