Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DF - Manifold Absolute Pressure (MAP)/Barometric Pressure (BP) >> DF7

DF7

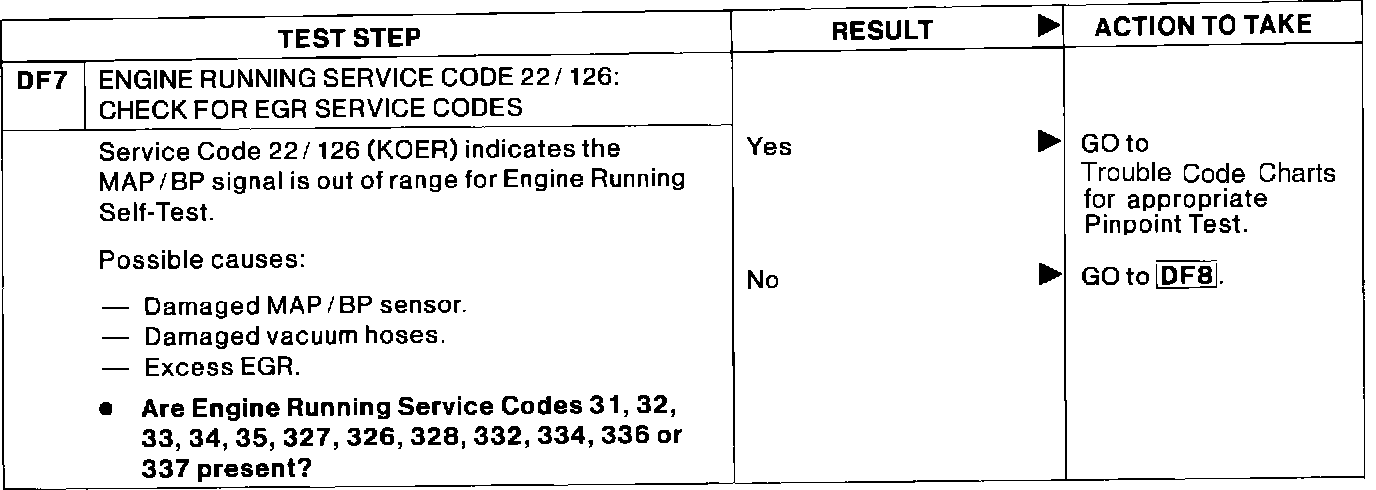

Pinpoint Test DF7:
