Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DC - Mass Air Flow (MAF) Sensor >> DC16 - Check PWR GND Circuit Continuity

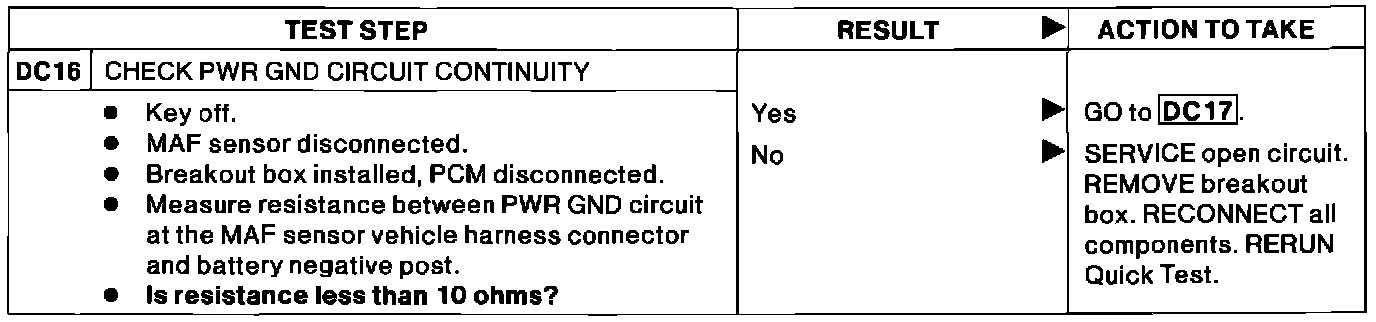

DC16 - Check PWR GND Circuit Continuity

Pinpoint Test DC16:
