Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DC - Mass Air Flow (MAF) Sensor >> DC15 - Check MAF Circuit For Shorts to GND and MAF RTN Circuit

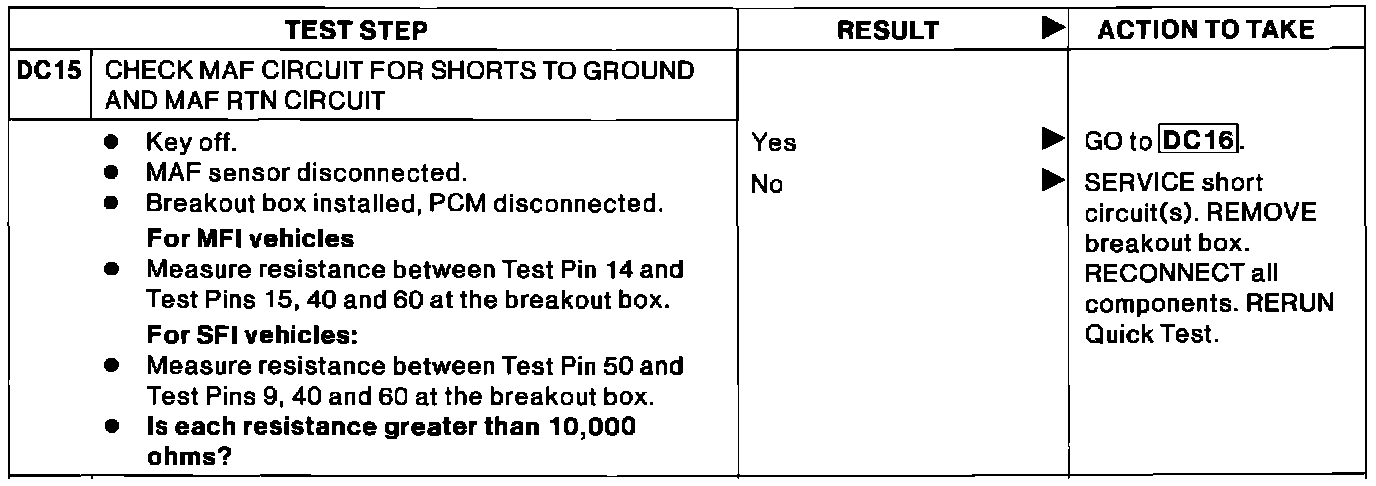

DC15 - Check MAF Circuit For Shorts to GND and MAF RTN Circuit

Pinpoint Test DC15:
