Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Diagrams >> Electrical Diagrams

Electrical Diagrams

Schematic, Headlight Switch:

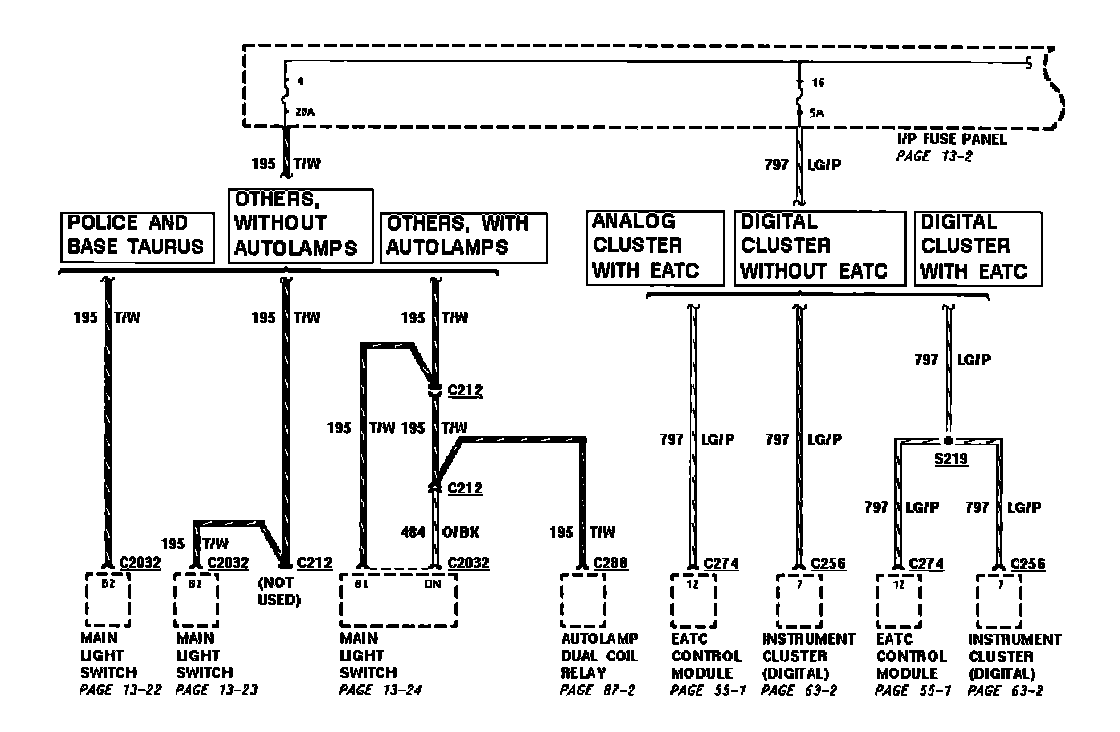

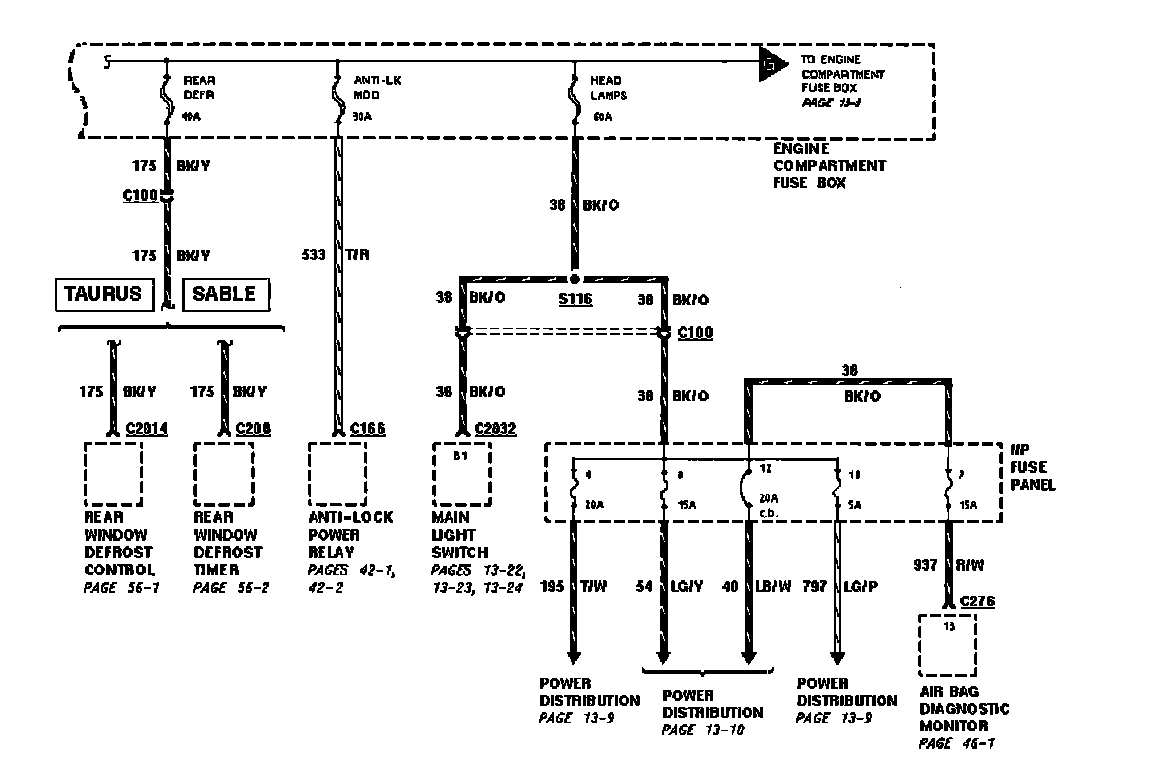

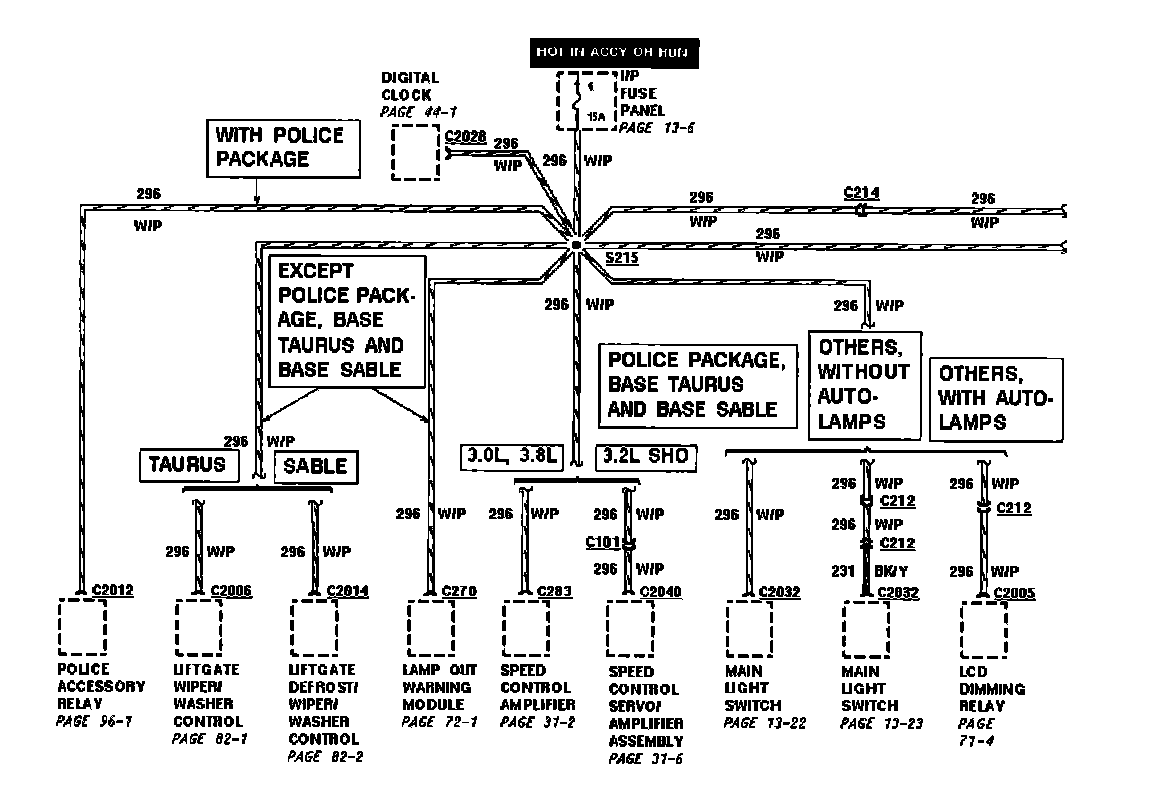

Power Distribution:






Power Distribution:






Power Distribution:

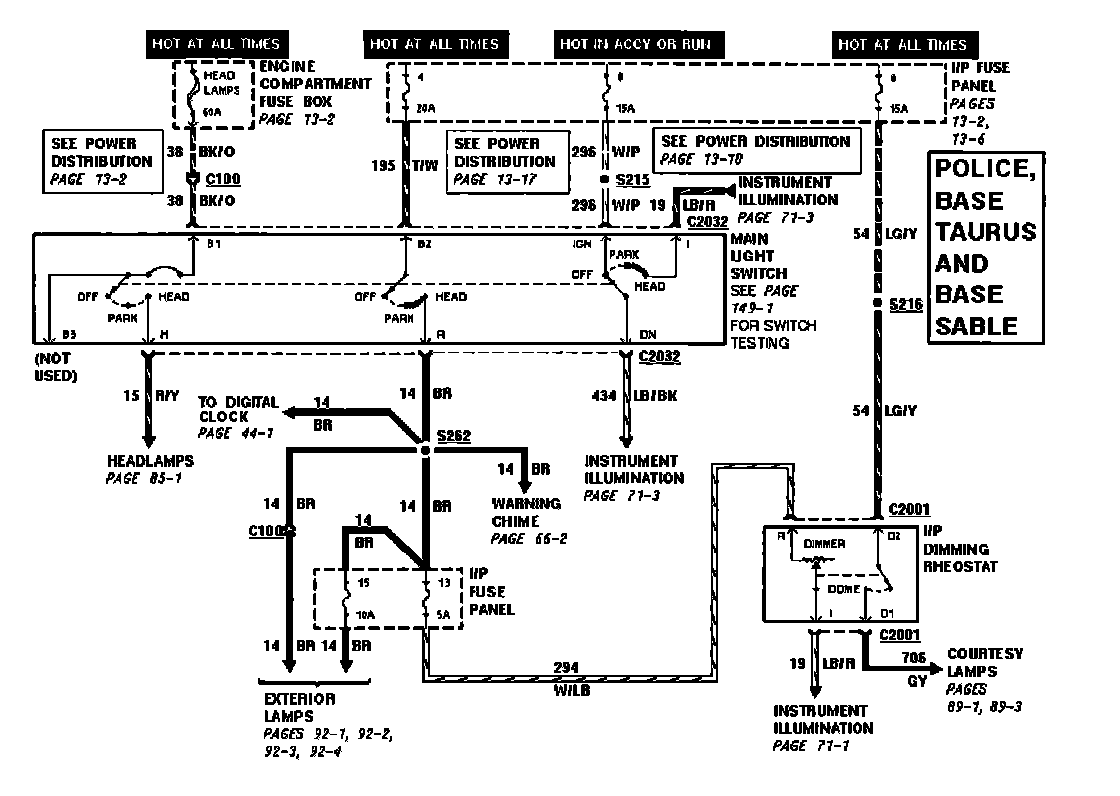

Power Distribution, Police, Base Taurus And Base Sable:

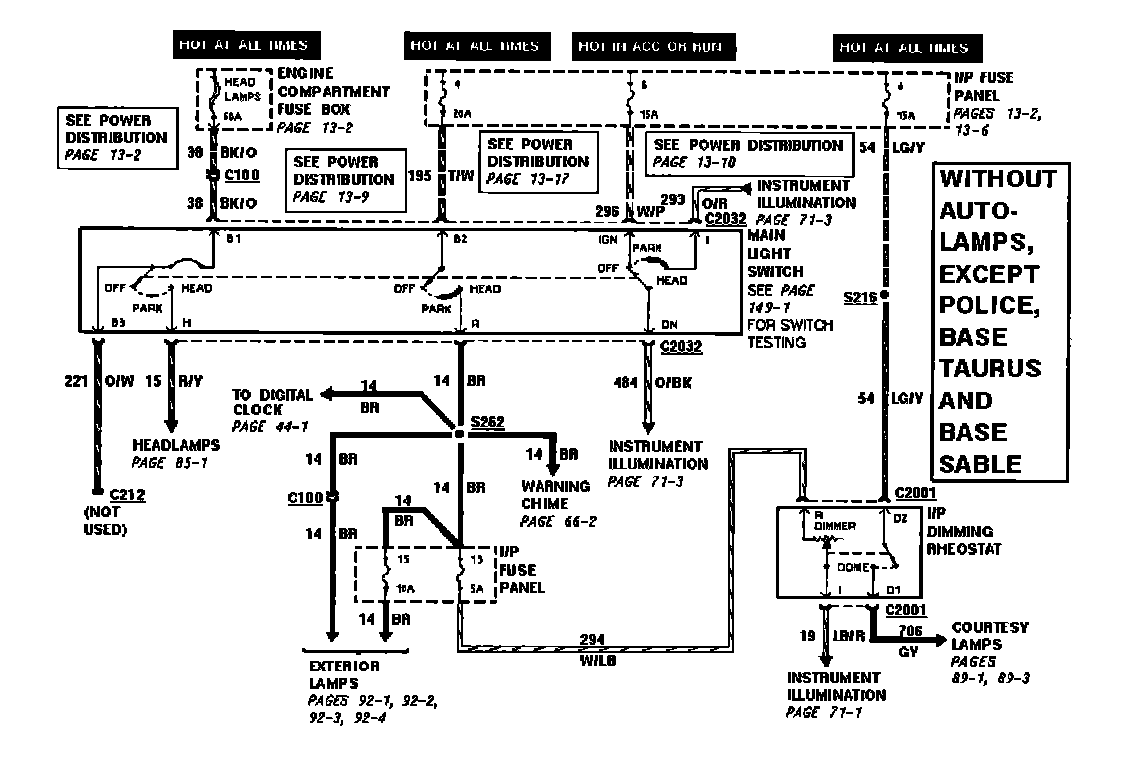

Power Distribution, Without Autolamps, Except Police, Base Taurus And Base Sable:

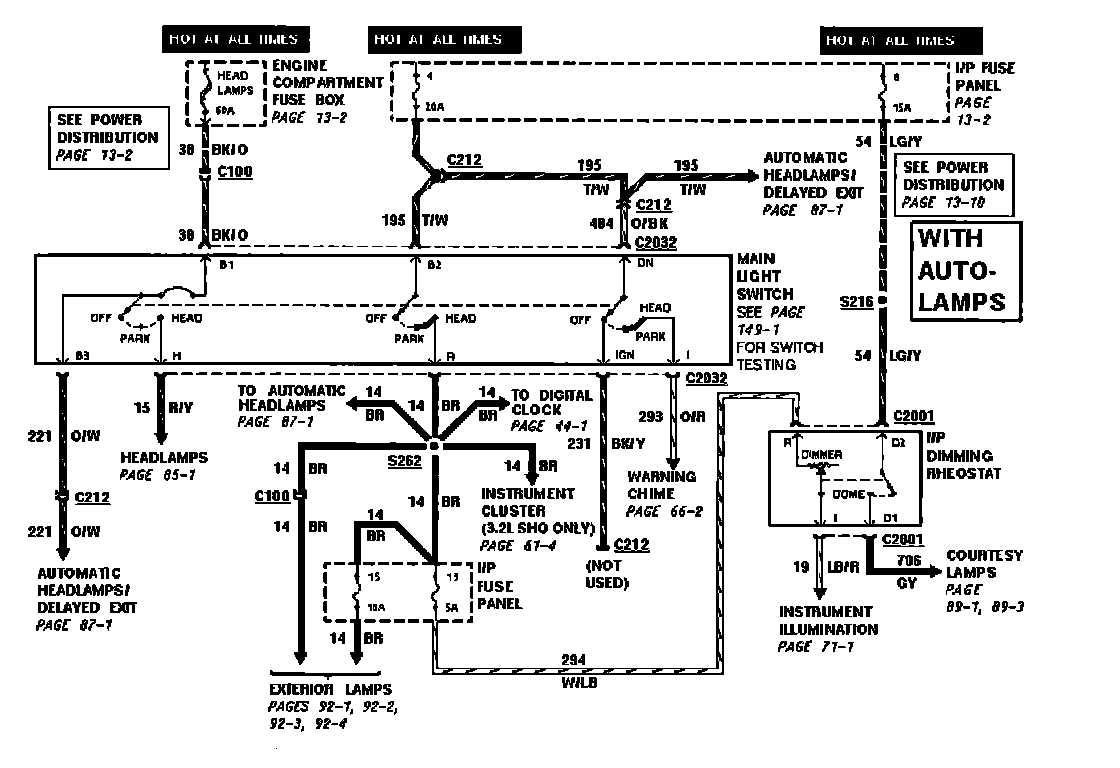

Power Distribution, With Autolamps:
