Diagnostic Schematic and Connector Information

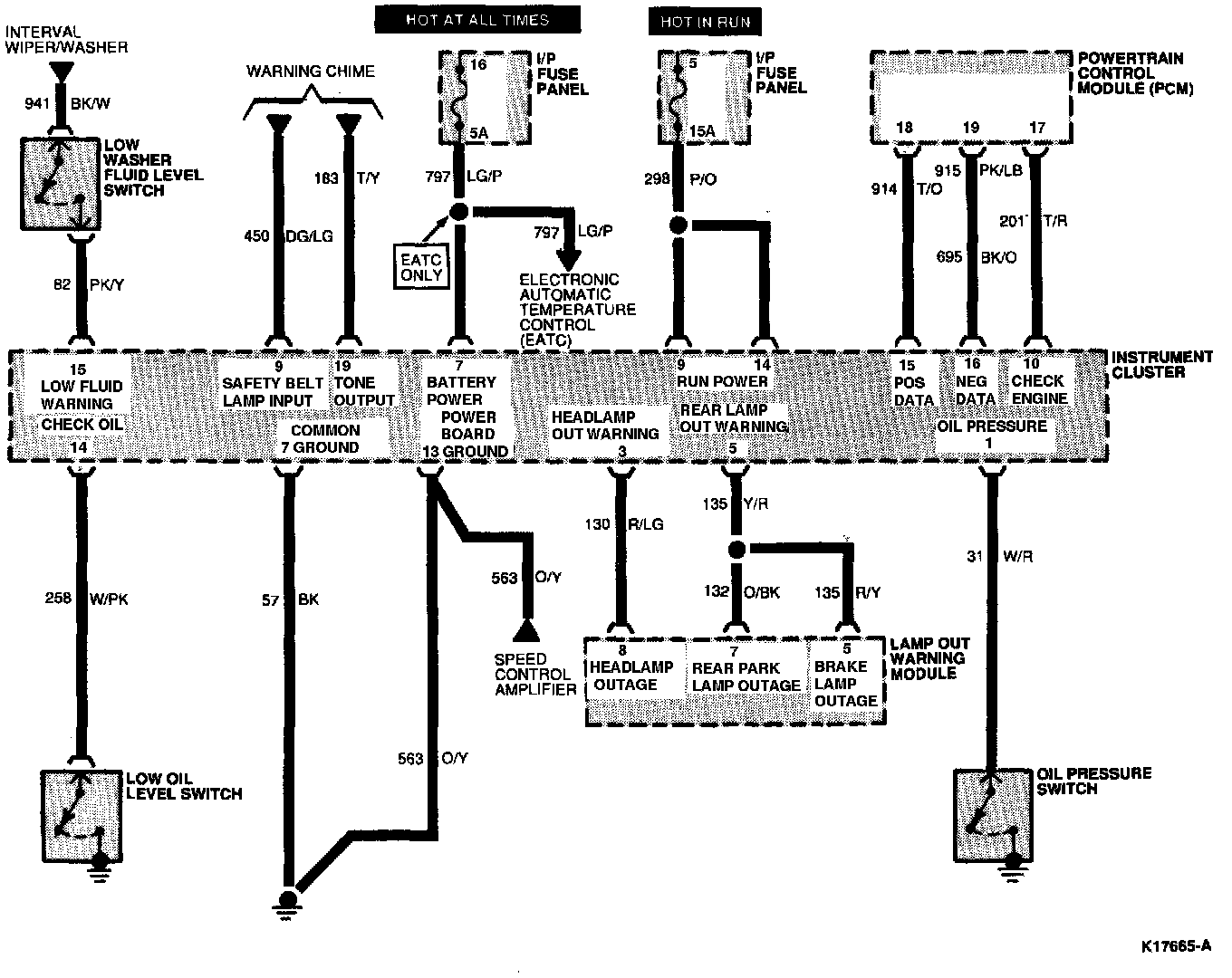

Digital Instrument Cluster Wiring Part 1:

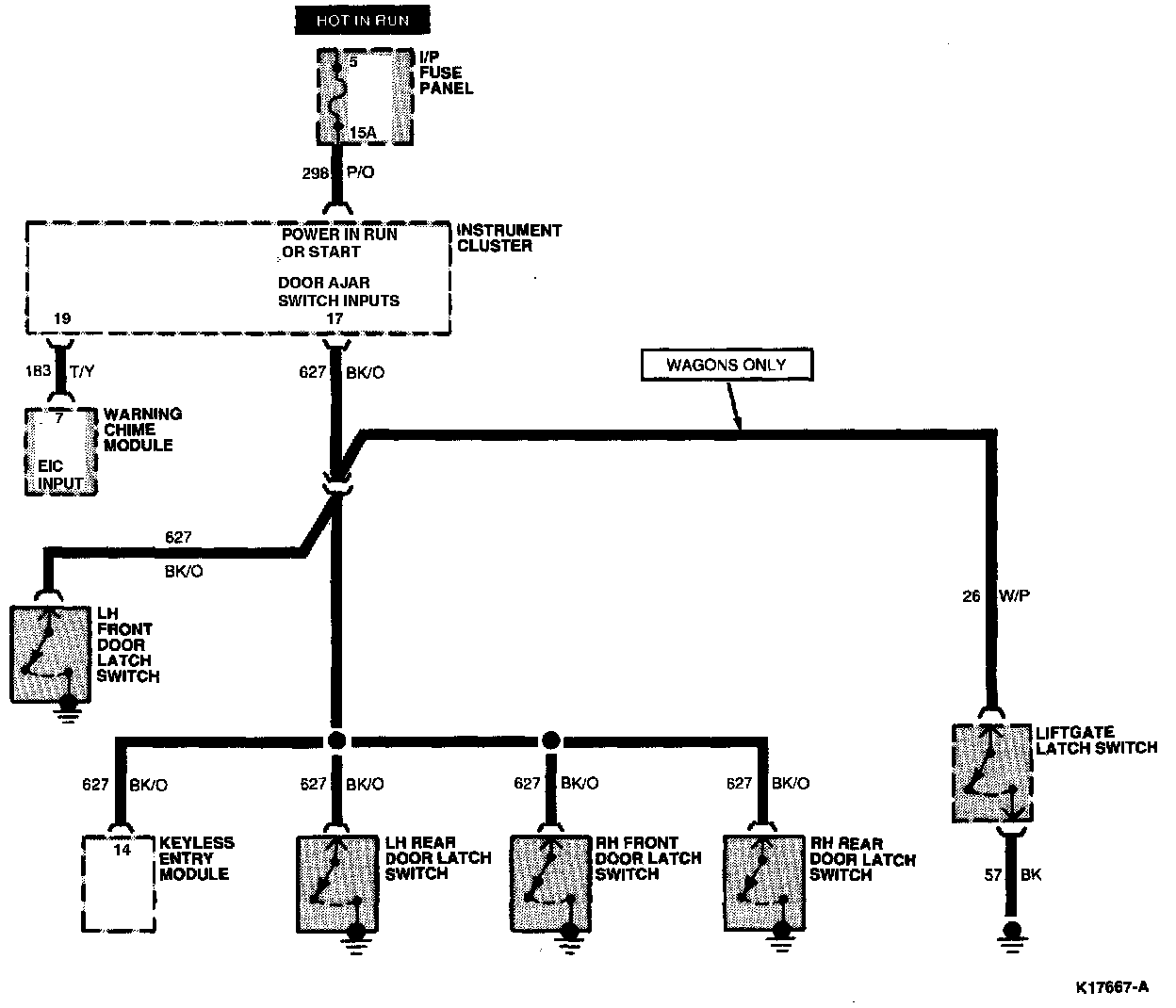

Digital Instrument Cluster Wiring Part 2:

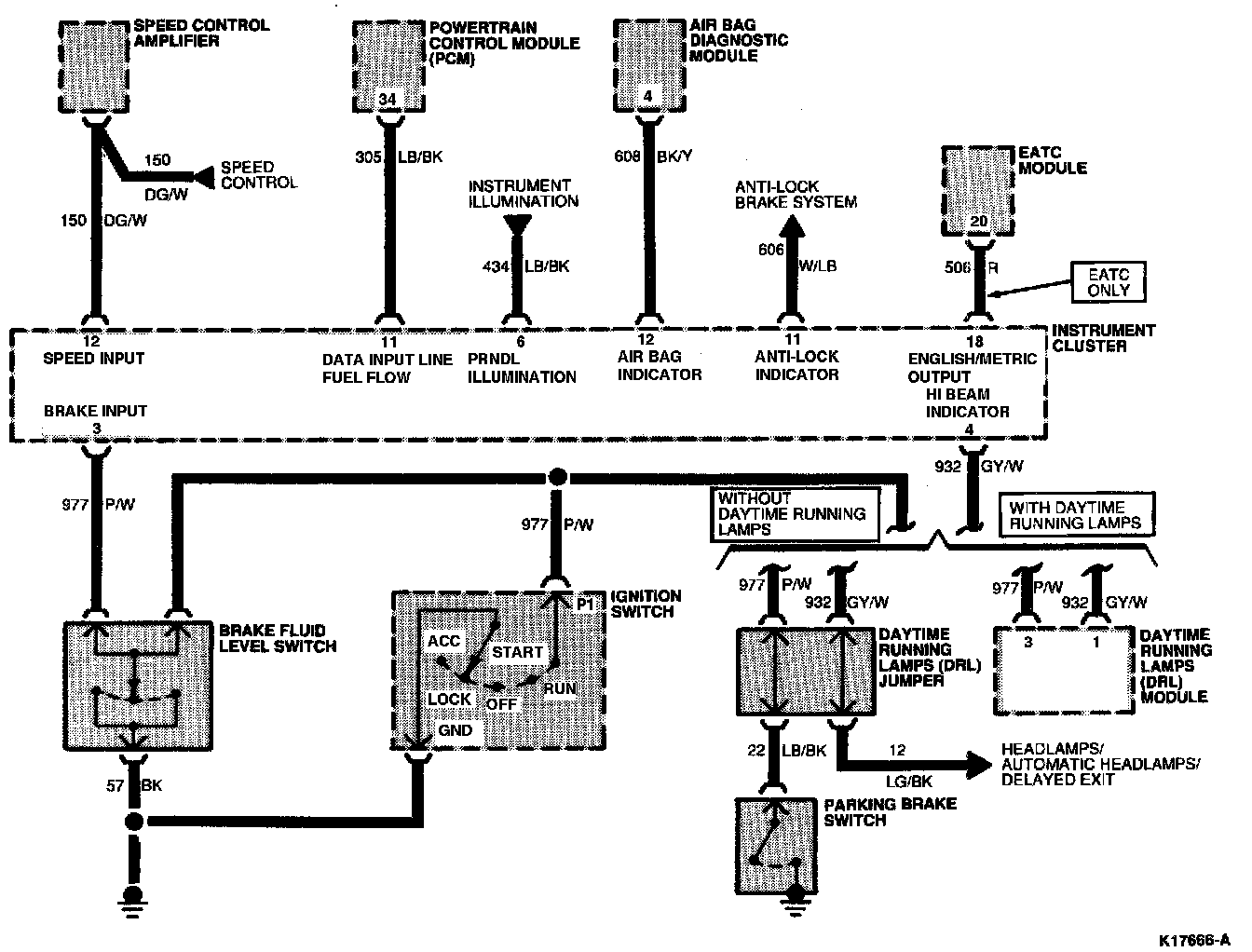

Digital Instrument Cluster Wiring Part 3:

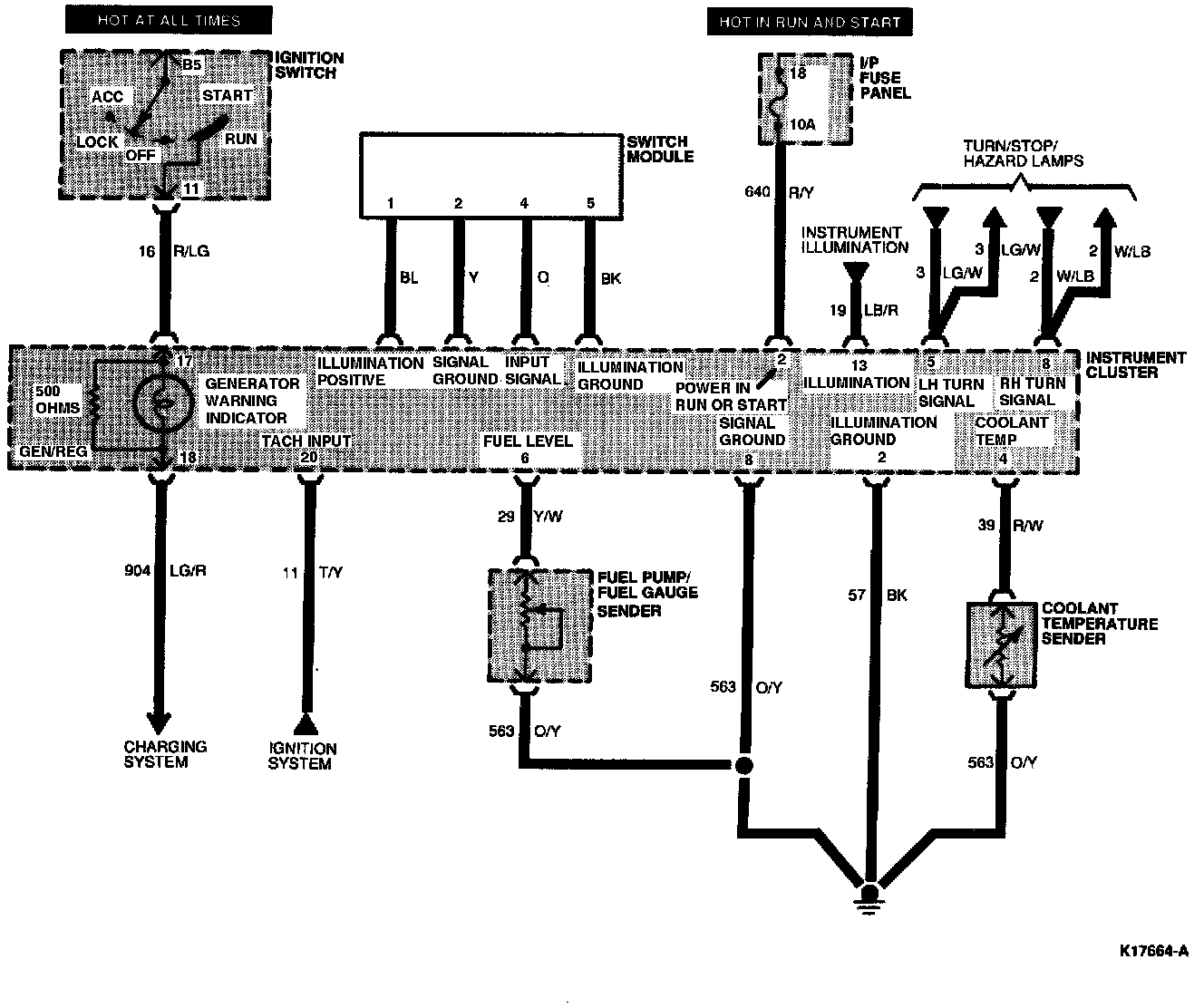

Digital Instrument Cluster Wiring Part 4:

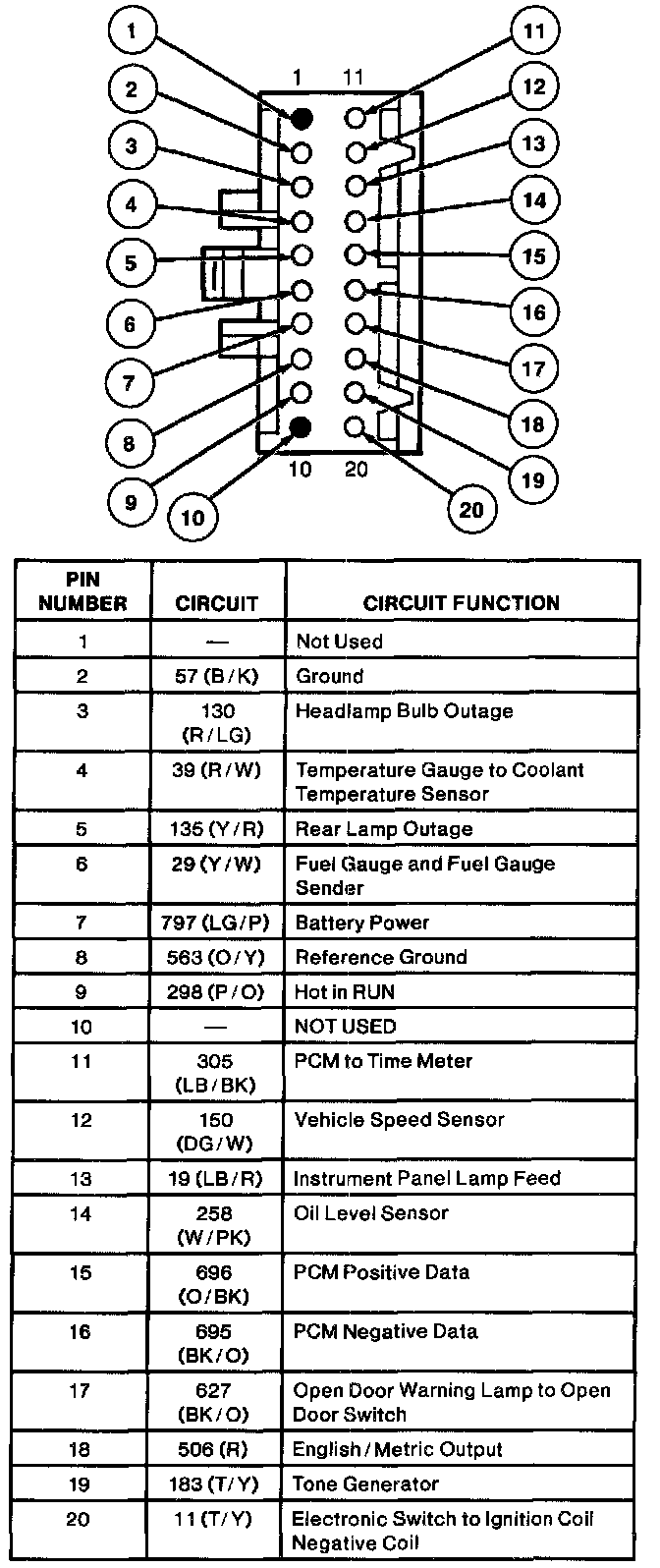

Instument Cluster Connector:

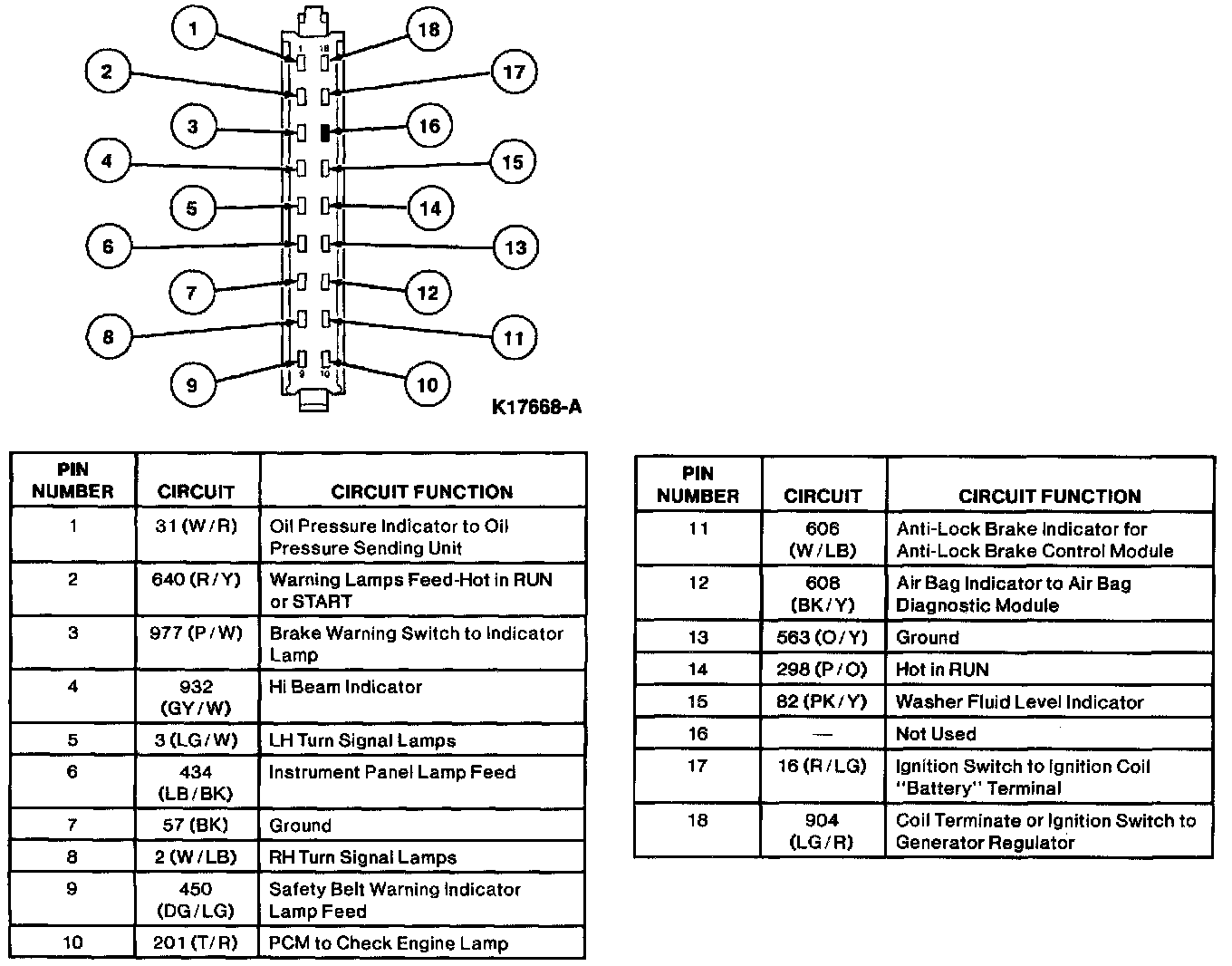

Instument Cluster Connector:
