Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Electronic Climate Control >> Conditions >> Condition 1-No Blower, Ign In Run, ENG Warm, Auto Mode 90 F. >> Test Step 1-2

Test Step 1-2

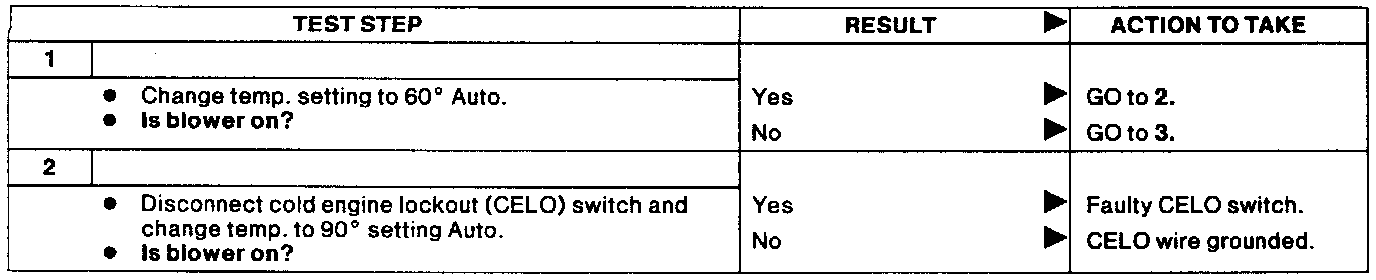

Self Test - Blower Speed Controller (BSC) Condition 1 - Test Step 1 - 2:
