Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> Manual Climate Control >> A/C Compressor Clutch Circuit Diagnosis >> B7-B13

B7-B13

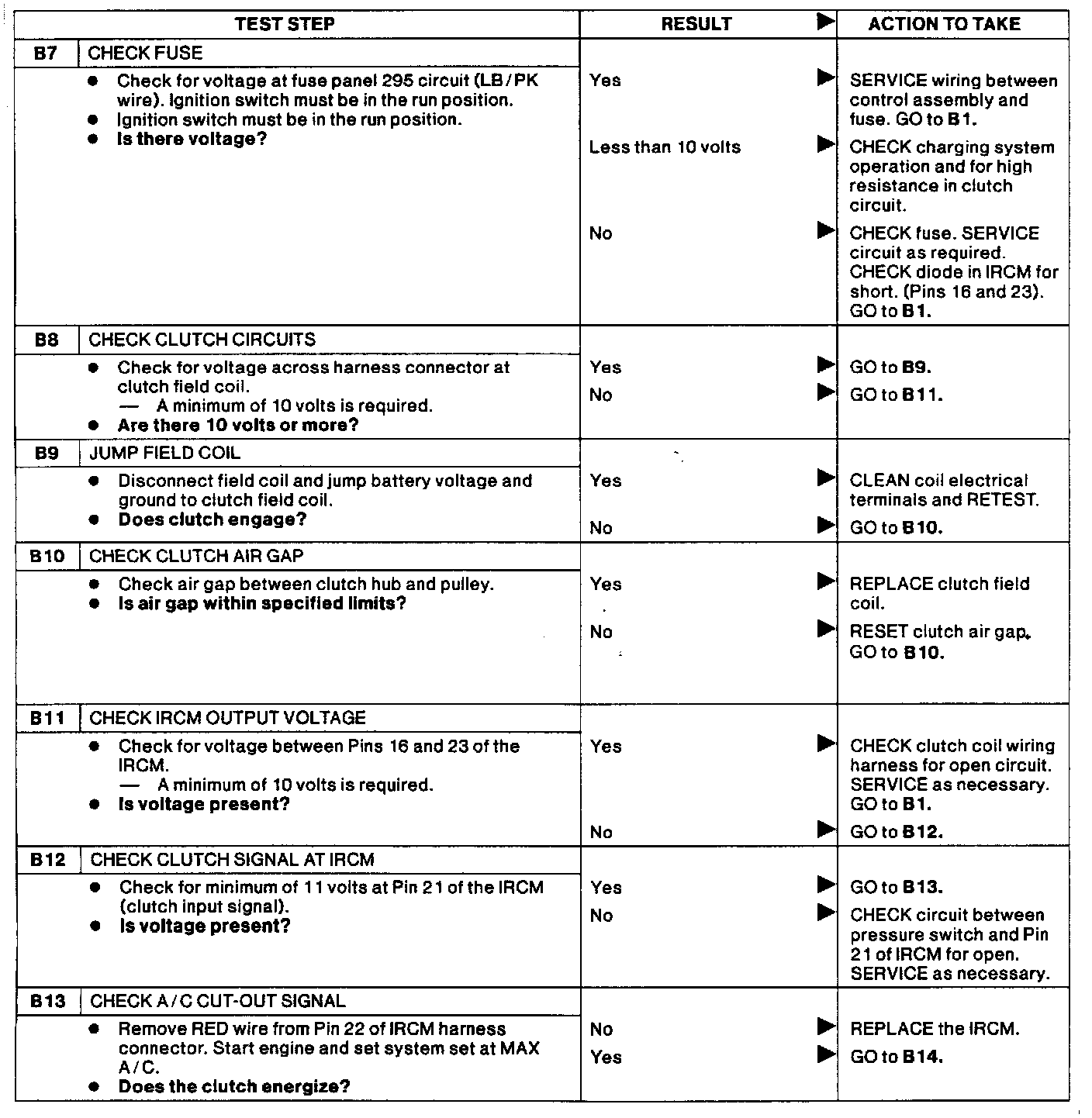

Pinpoint Test B7 - B13 - A/C Compressor Clutch Circuit Diagnosis:
