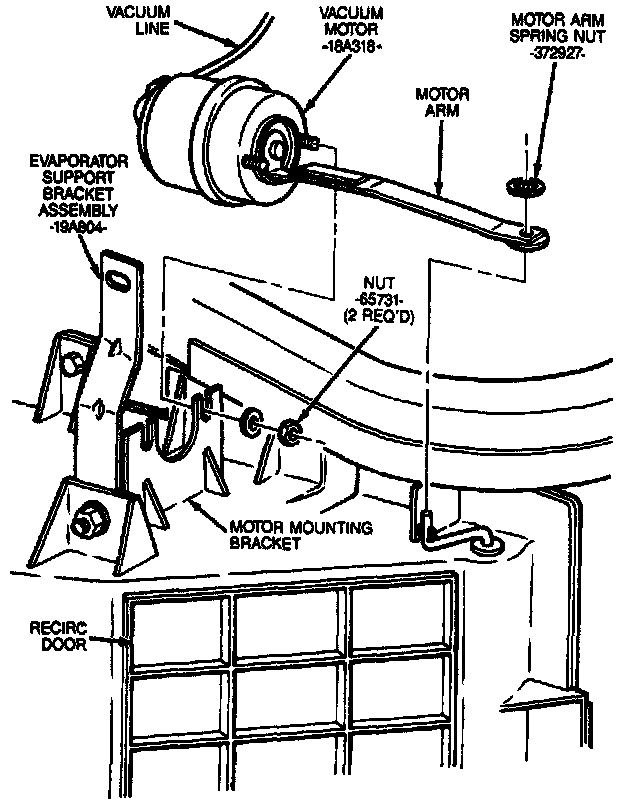

Fresh Air/Recirculation Actuator

REMOVAL
1. Lower the glove compartment door to provide access to the recirculating duct assembly.
2. Disconnect the vacuum hose from the end of the vacuum motor.






3. Remove the motor arm retainer from the door crank arm.
4. Remove the two nuts retaining the vacuum motor to the recirculating duct and remove the motor.

INSTALLATION
1. Position the vacuum motor to the outside-recirculating door crank arm. Position the motor to the recirculating duct and install the two retaining nuts.
2. Install the retainer on the door crank arm.
3. Connect the white vacuum hose to the vacuum motor and check the operation of the vacuum motor.
4. Lift the glove compartment into position.
