Rear

1. Raise and support vehicle.
2. Remove wheel and tire assembly.
3. Remove screw retaining brake hose bracket to shock absorber bracket.
4. Remove retaining clip from parking brake cable at caliper.

Parking Brake Cable And Retaining Clip:

5. Remove cable end from parking brake lever.

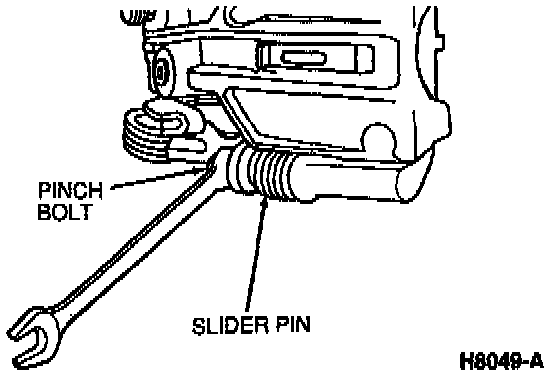

Pinch Bolt And Slider Pin:

6. Remove upper pinch bolt.

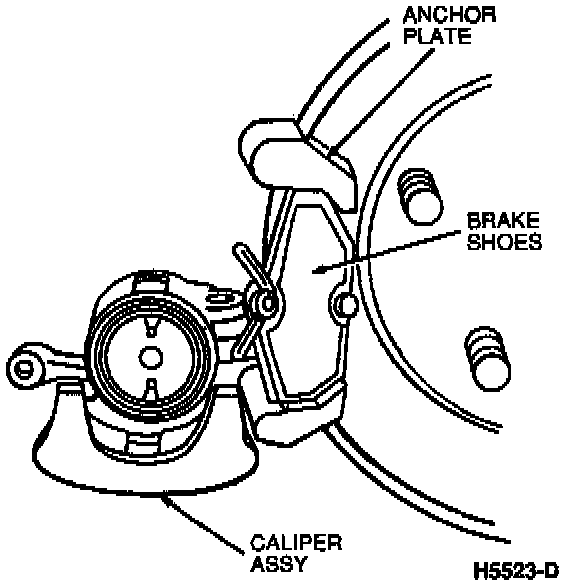

Rear Caliper:

7. Rotate caliper away from rotor.
8. Remove inner and outer brake pads.
