Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> EE Fluid Level Indicator/Pedal Travel Switch/Pressure Switch >> EE11 to EE18

EE11 to EE18

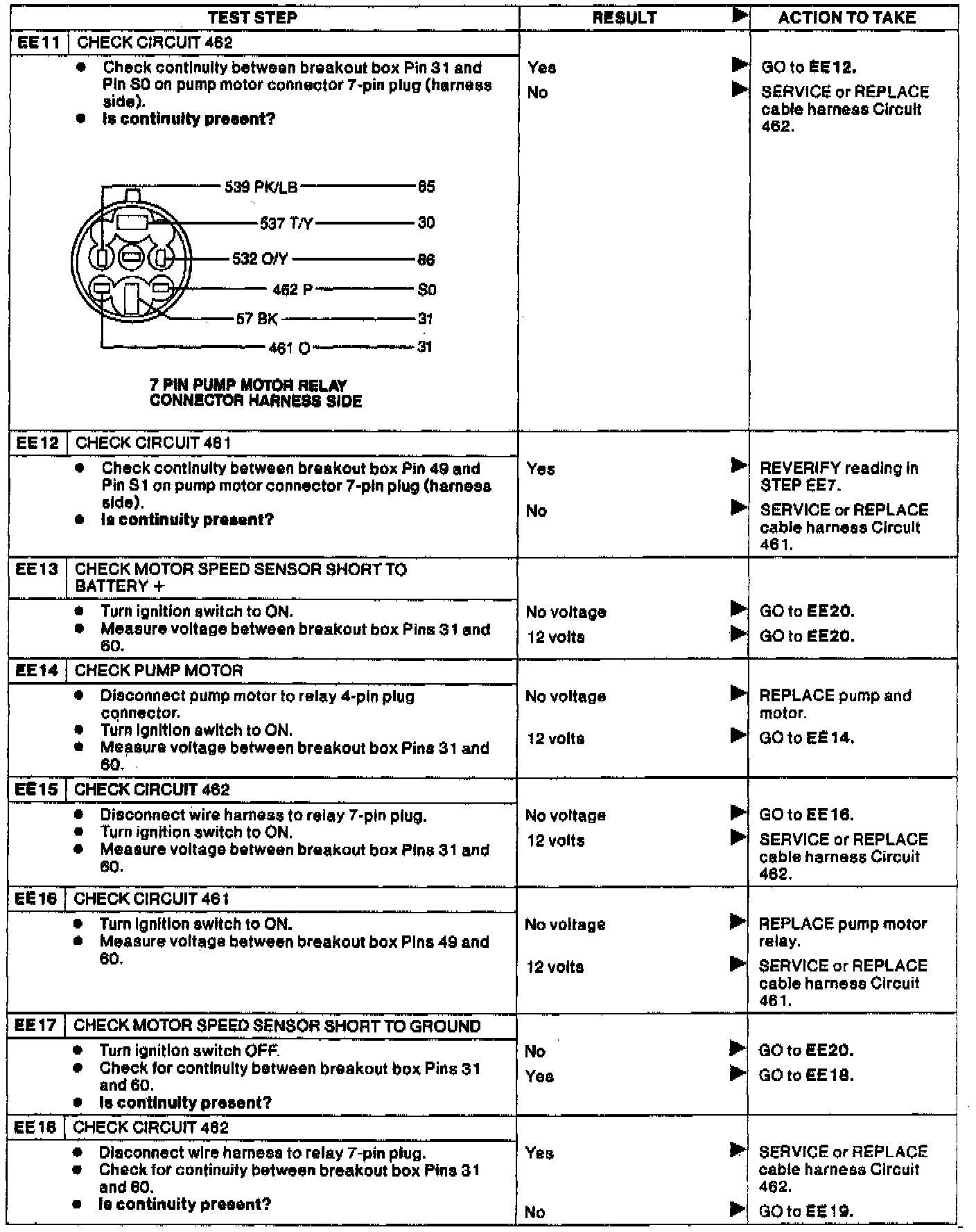

Fig. 91 Test EE, Fluid Level Indicator/Pedal Travel Switch/Motor Pump Diagnosis. Taurus/Sable:
