Roof

Removal and Installation

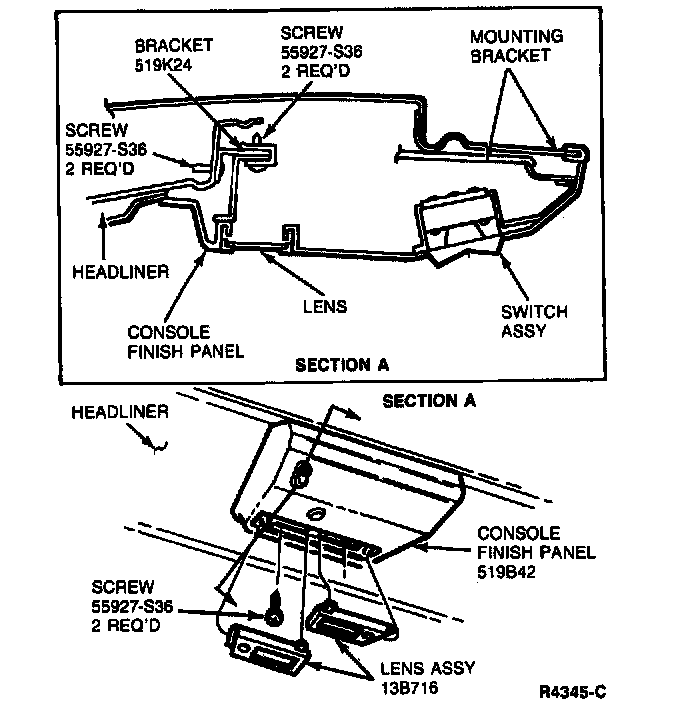

1. Remove lamp lenses by inserting a flat-blade screwdriver in one of the notches on the side of each lens.






2. Remove two console retaining screws (one inside each lens opening).

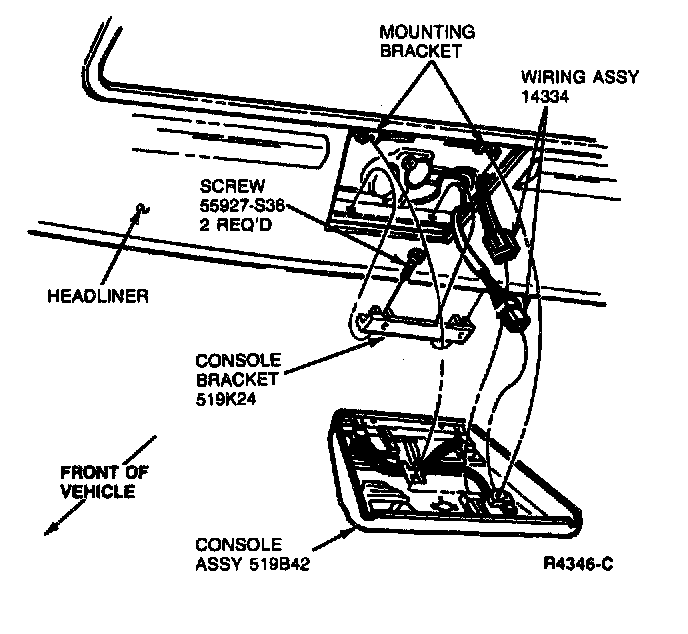

3. Remove console by sliding up and to rear of vehicle to disengage from mounting bracket.
4. Disconnect electrical connections.






5. To install, reverse Removal procedure.
