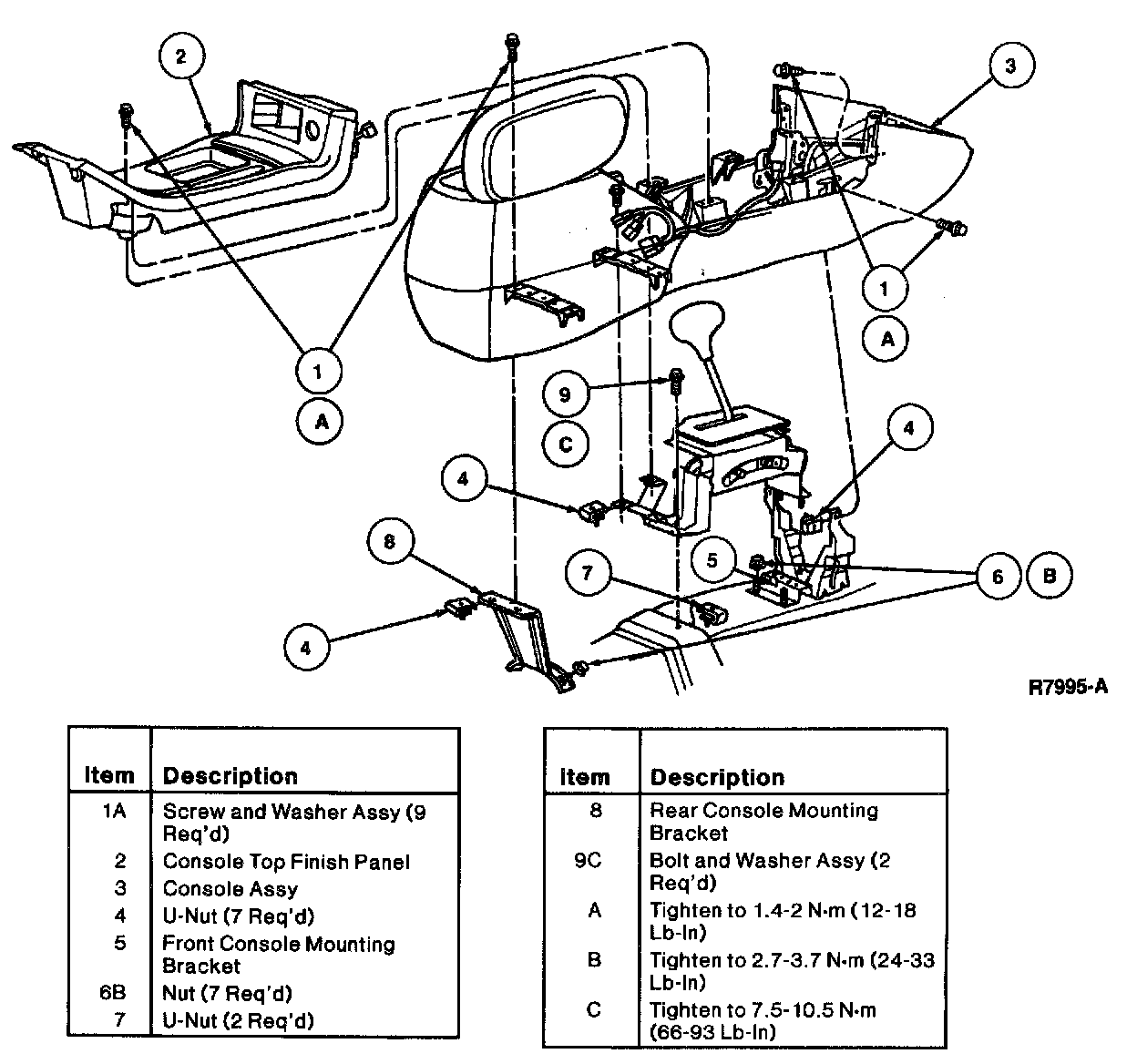

Floor Console

Removal and Installation
1. Remove cup holder and shift lever opening cover retaining screw.
2. Move shift lever rearward.
3. Remove shift lever opening cover (snaps out).






4. Remove eight console to floor bracket retaining screws. The two rear screws are under the mat in the rear storage bin.
5. Disconnect all necessary electrical connectors and remove console.
6. To install, reverse Removal procedure.
