Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> High Level Audio - PAC

High Level Audio - PAC

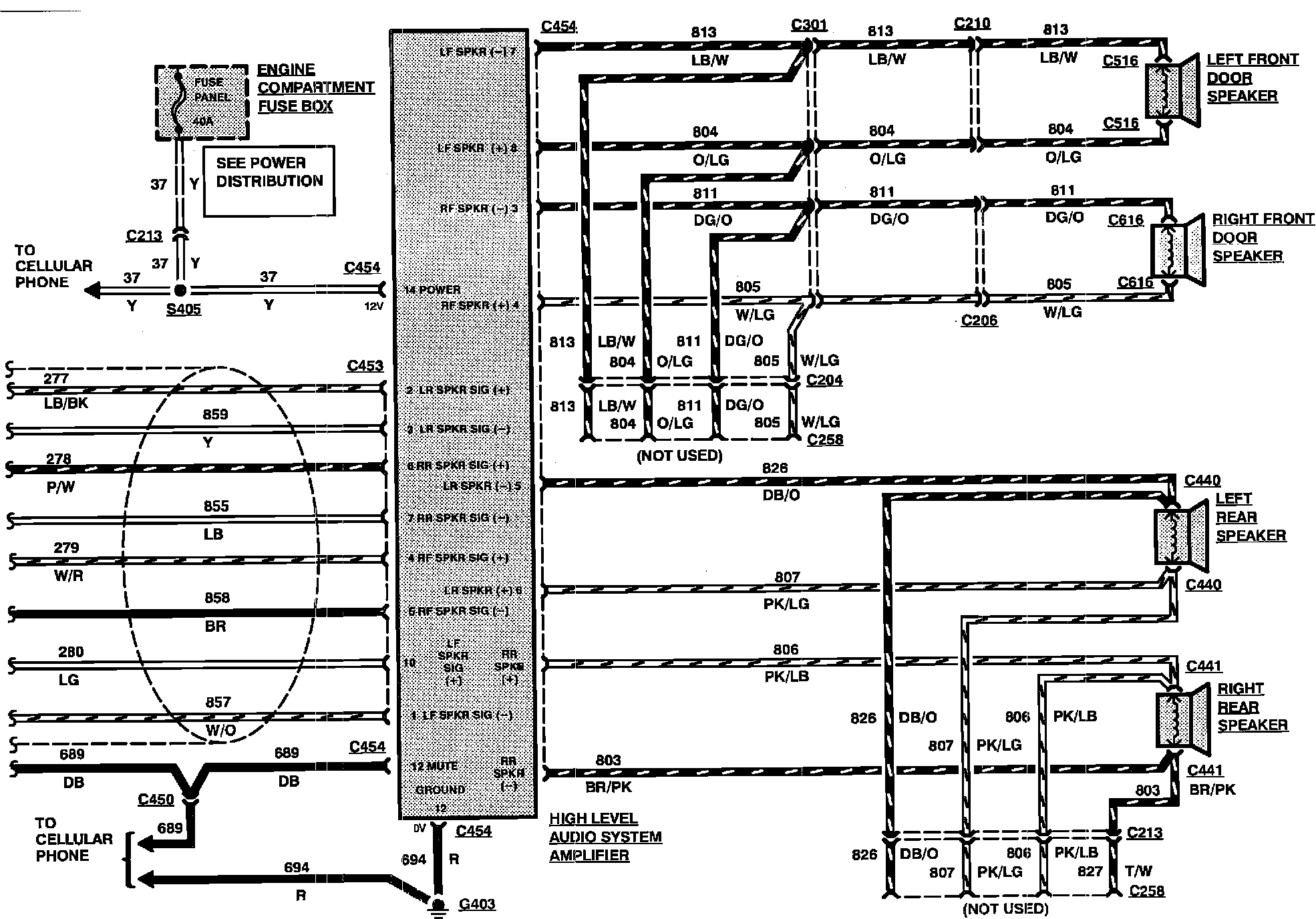

Radio (High Level Audio - Pac):

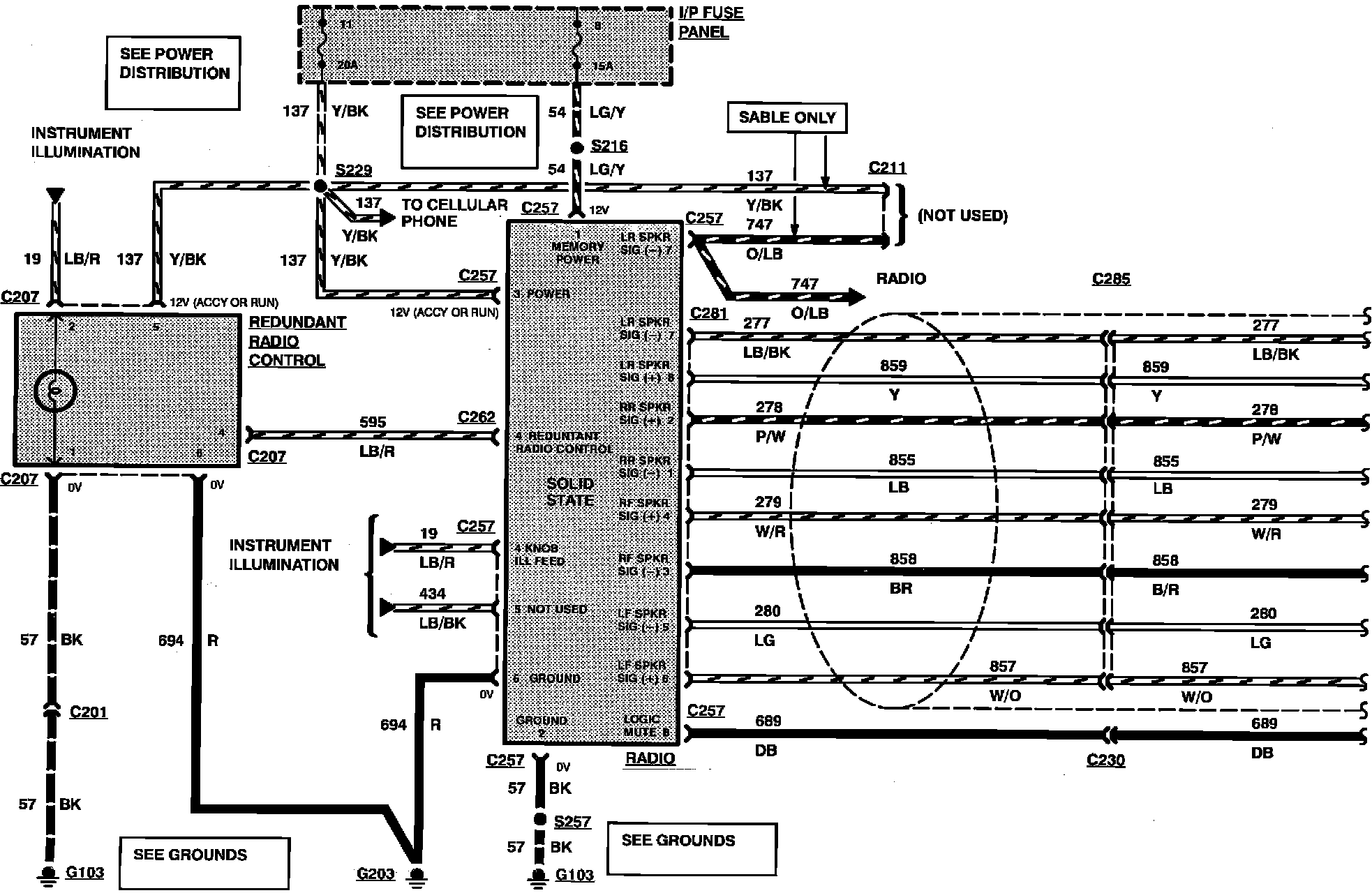

Radio (High Level Audio - Pac):
