Test E1 - E3
Test E1 - E3

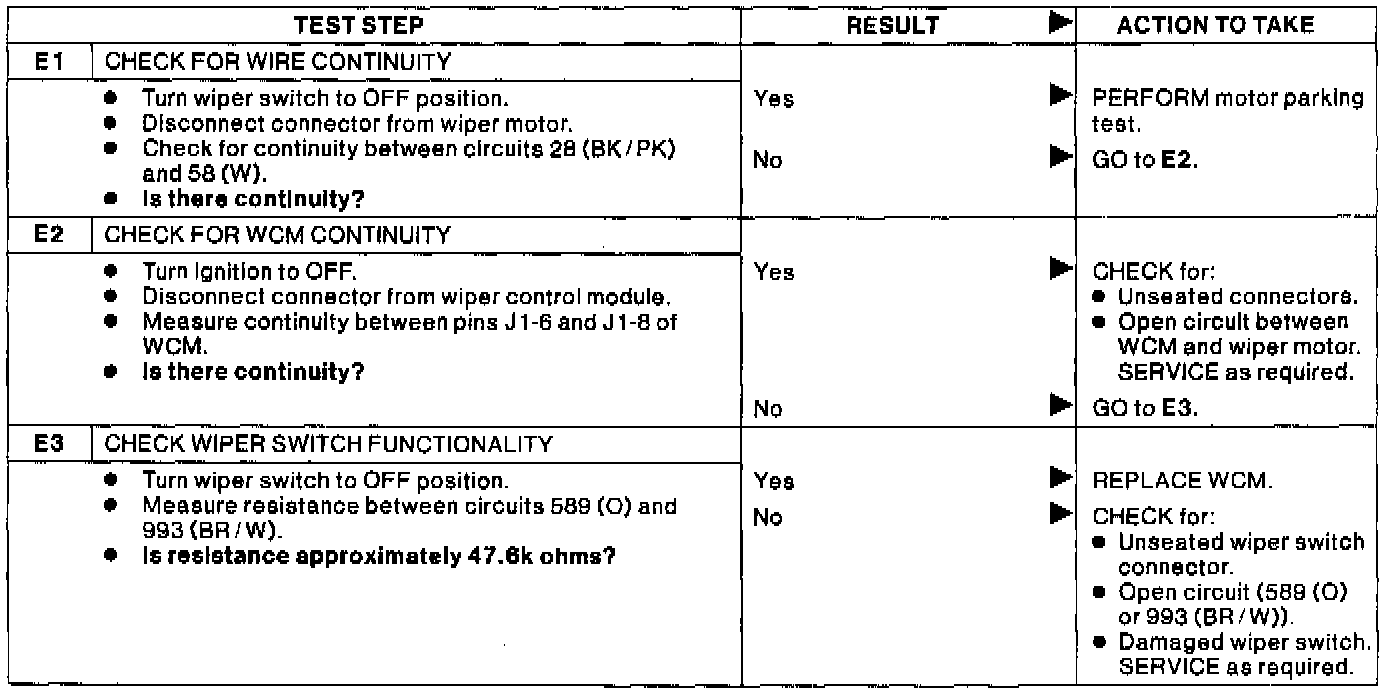

Fig. 45 Diagnostic Pinpoint Test E, Wipers Will Not Park Below Windshield. Town Car/Crown Victoria/Grand Marquis:
