Home >> Mercury >> 1993 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Wiper/Washer Diagnosis >> Test D1 - D5

Test D1 - D5

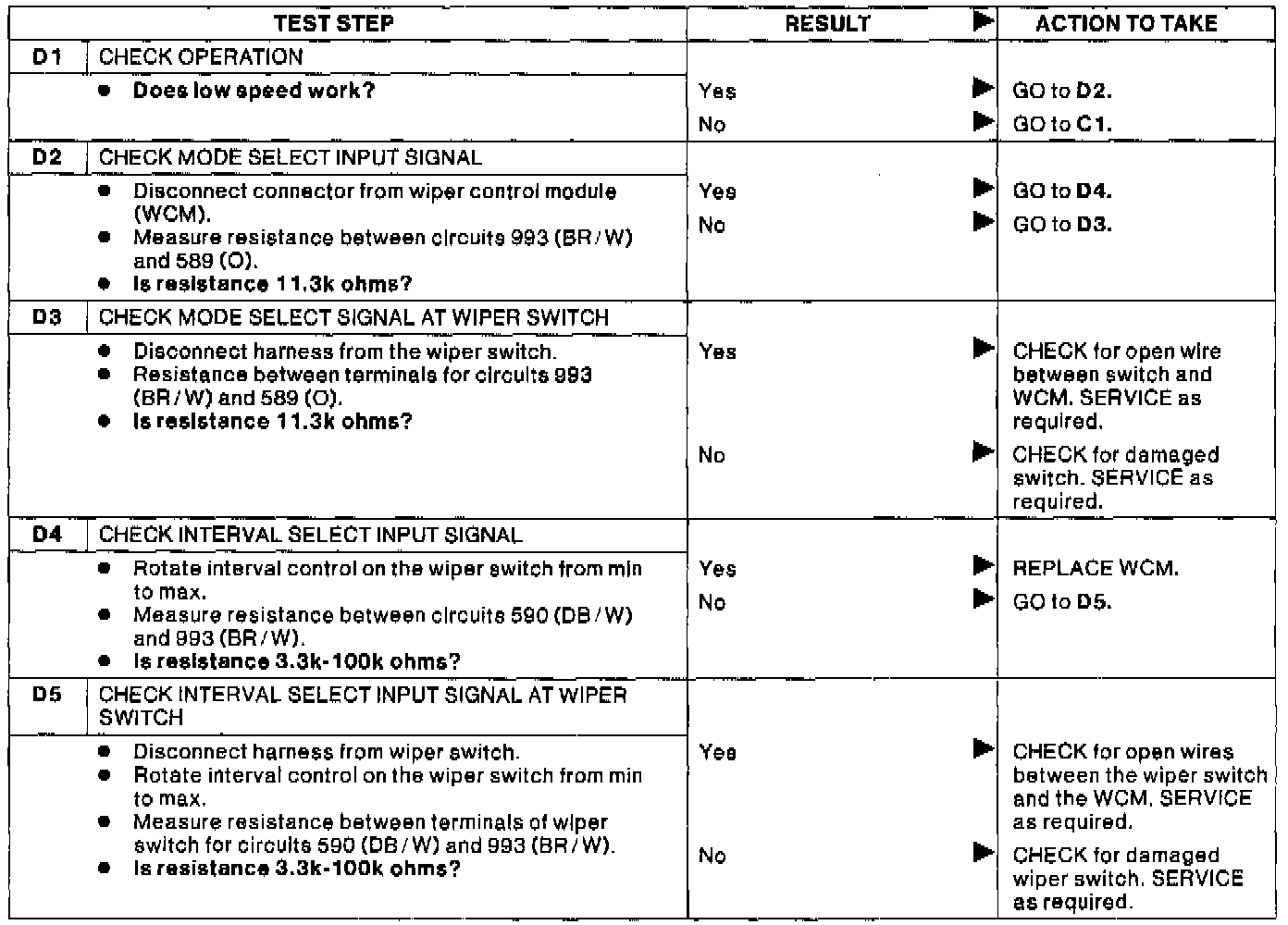

Fig. 44 Diagnostic Pinpoint Test D, Wipers Inoperative At Low Speed Interval. Town Car/Crown Victoria/Grand Marquis:
