Test B2 - B8

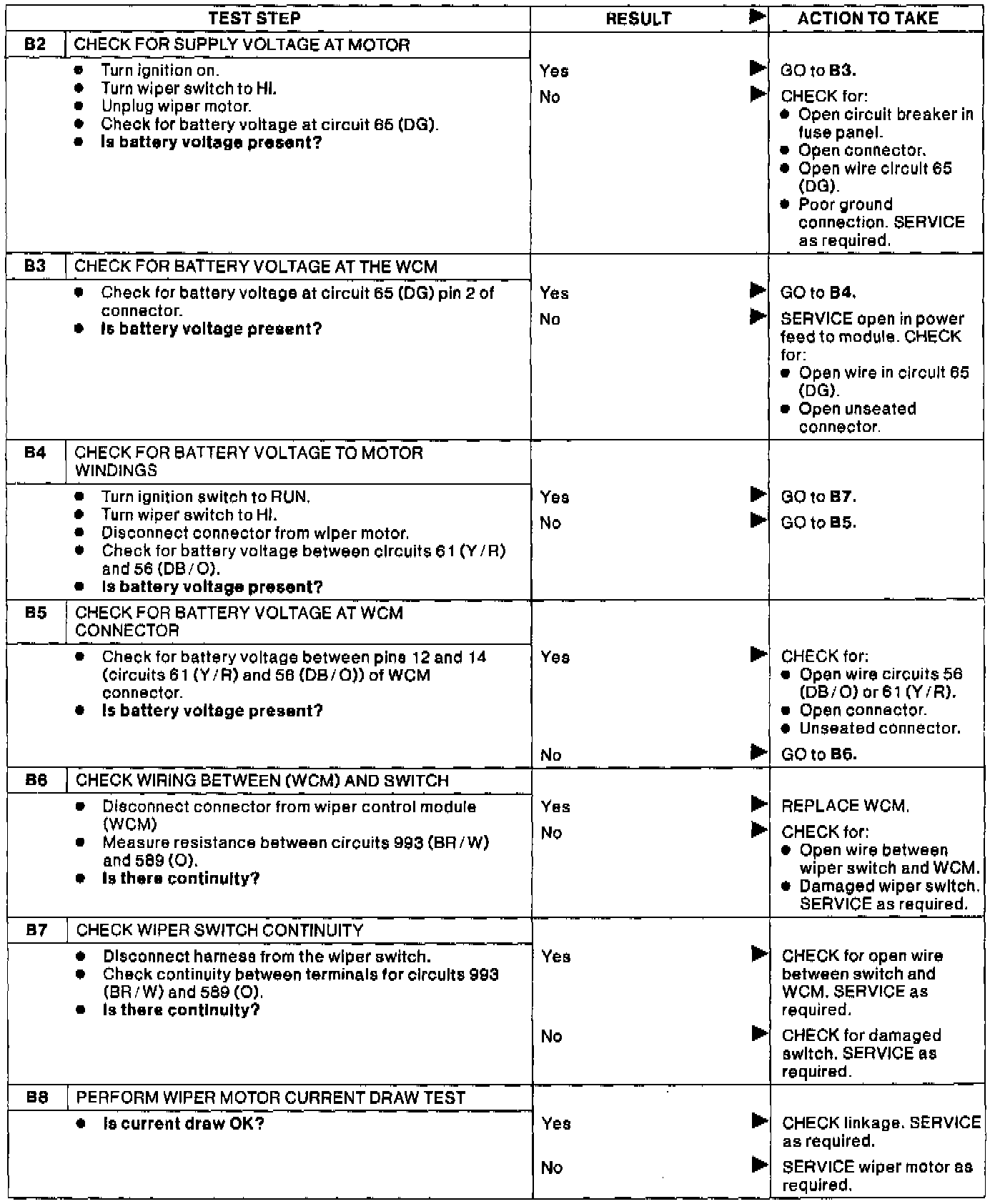

Fig. 42 Diagnostic Pinpoint Test B, Wipers Inoperative At High Speeds. Town Car/Crown Victoria/Grand Marquis:
