Test A1 - A4

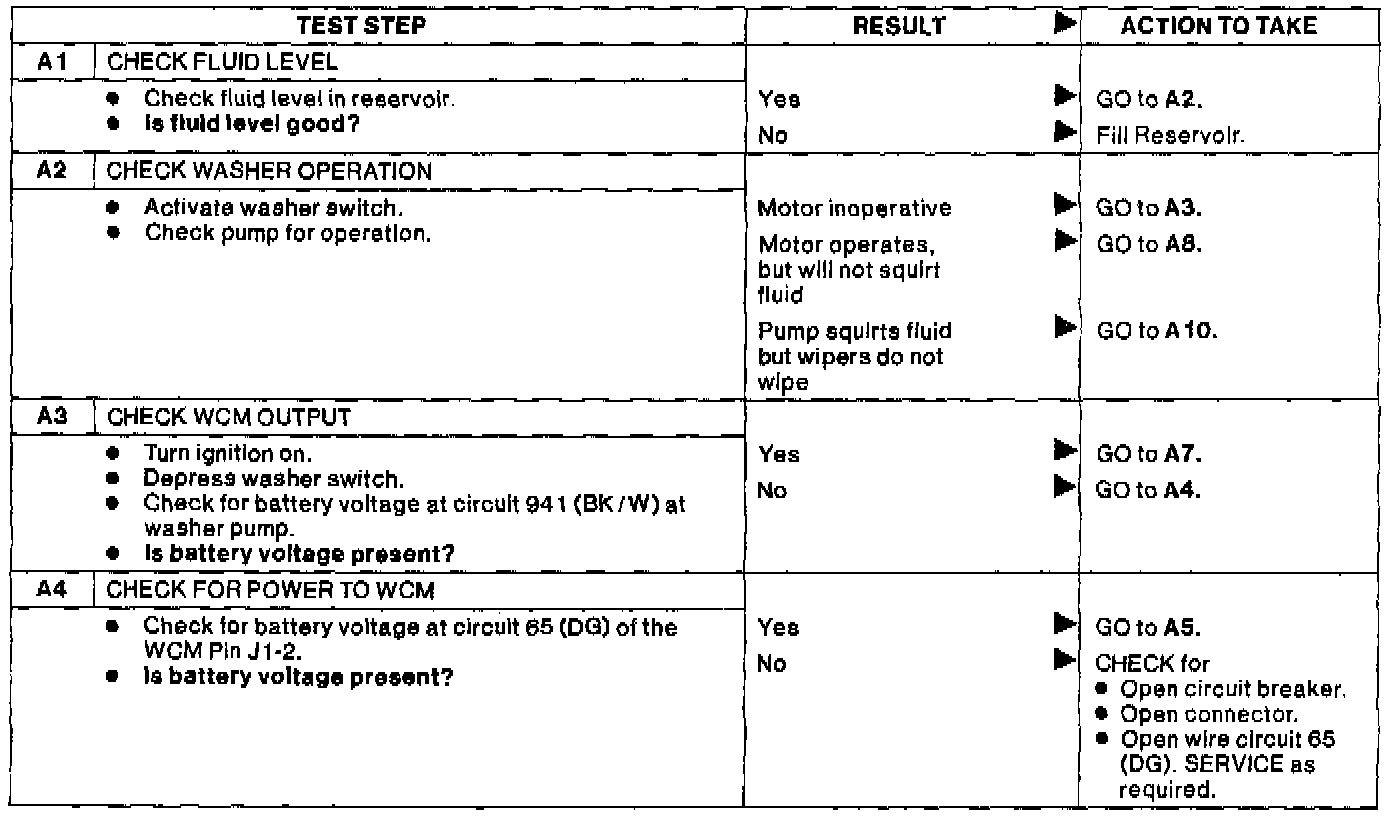

Fig. 41 Diagnostic Pinpoint Test A, Washer Inoperative. Town Car/Crown Victoria/Grand Marquis:
