Home >> Mercury >> 1993 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> AB Functional Tests

AB Functional Tests

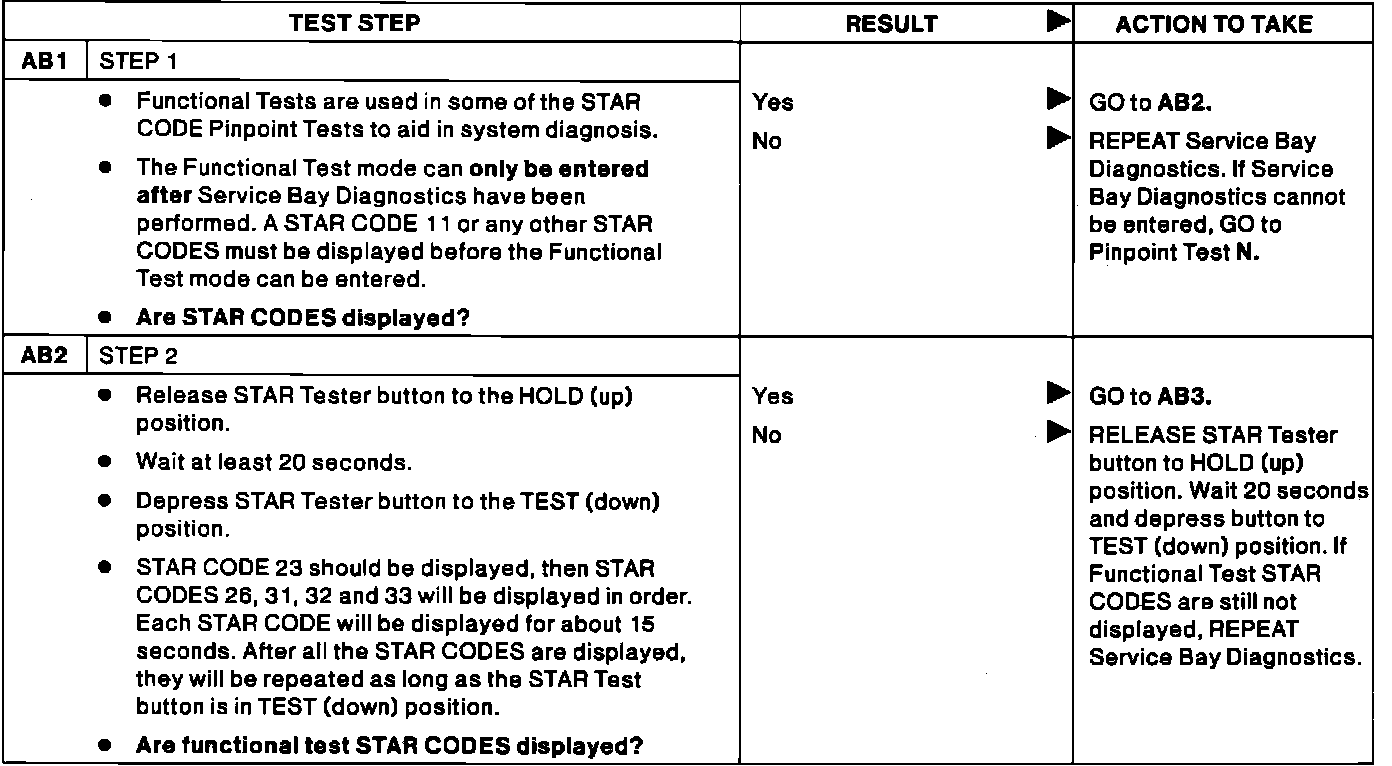

Test AB1 - AB2 Functional Test Procedure:

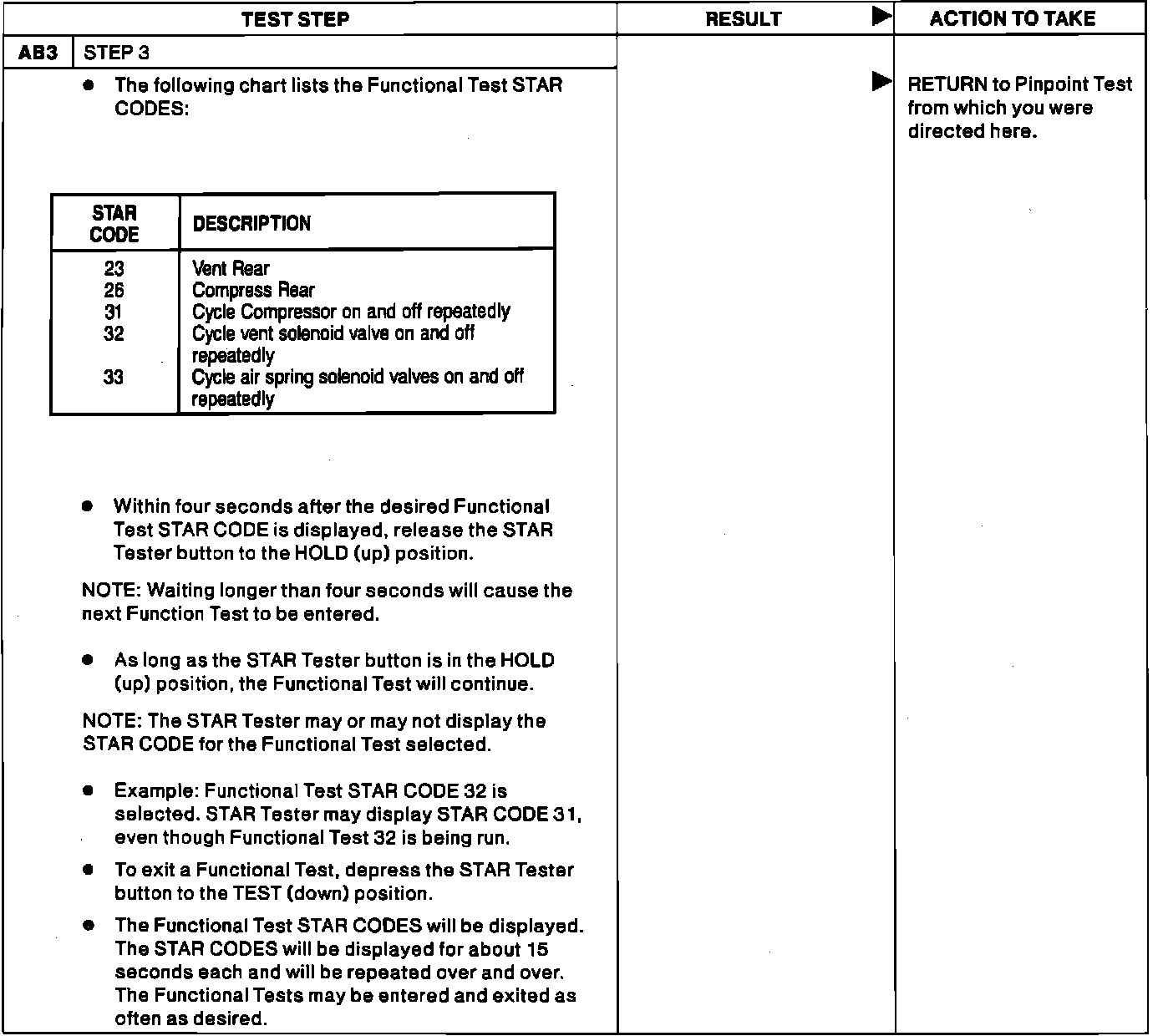

Test AB3 Functional Test Procedure:








This test is run after the Auto/Manual Diagnostic Check.
