Testing Note

Service Diagnostic Test Lamp:

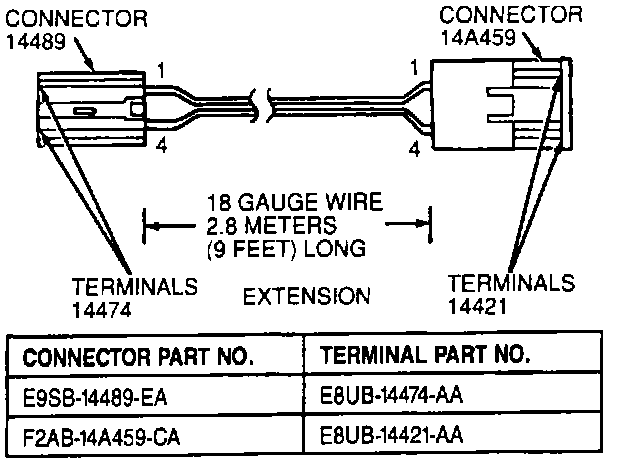

With the EVO diagnostic connector located in the luggage compartment, it is necessary to fabricate a jumper to attach service connection in luggage compartment to Rotunda EVO System Tester 105-00007 or equivalent in passenger compartment. Use the illustration to fabricate the jumper.

For diagnosis and testing of the system, refer to Diagnostic Charts.
