Ride Height Sensor: Service and Repair

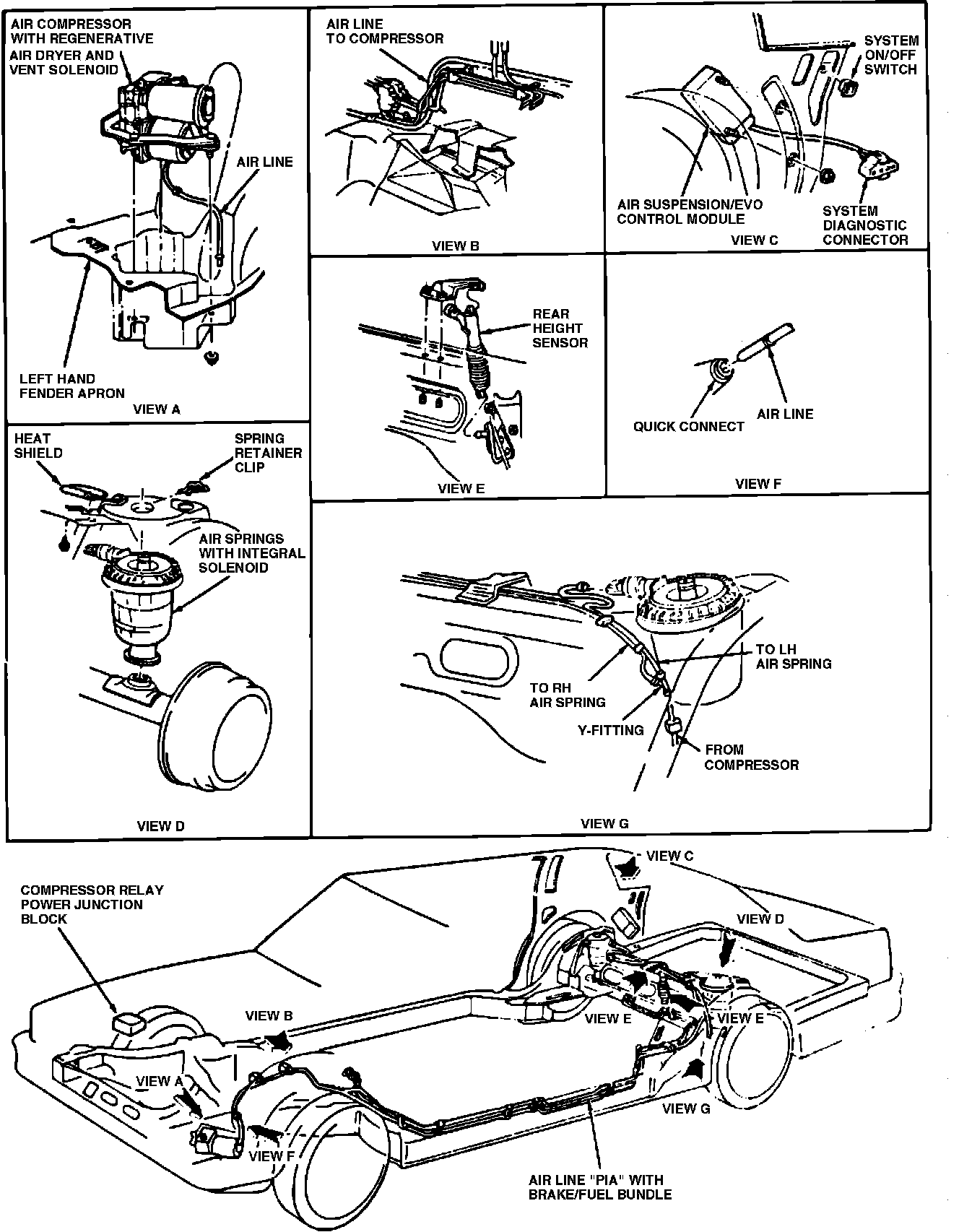

Fig. 1 Air Suspension System:

1. Turn air suspension switch to Off position.
2. Disconnect battery ground cable.
3. Raise and support vehicle, ensuring suspension is at full rebound.
4. Disconnect height sensor electrical connector.
5. Depress spring clip at bottom and top of sensor from ball studs, then pull sensor, Fig. 1.
6. Reverse procedure to install.
