Removal And Installation

REMOVAL
1. Disconnect positive battery cable and wait one minute for backup power supply energy to be depleted.

WARNING: The electrical circuit necessary for system deployment is powered directly from the battery. To avoid accidental deployment and possible personal injury, the positive battery cable must be disconnected prior to servicing or replacing any system components.

2. Disconnect RH or LH front sensor electrical connector.






3. Remove three screws retaining RH or LH front sensor at side of radiator support and remove sensor.

INSTALLATION

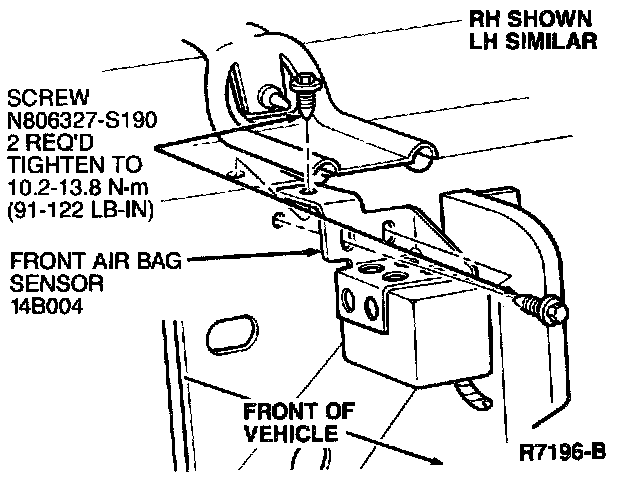

1. Position RH or LH front sensor and wire lead in vehicle and secure sensor to RH or LH side of radiator support with retaining screws. Tighten screws to 10.2-13.8 Nm (91-122 in lbs).
2. Connect RH or LH front sensor wire lead connector to wiring assembly connector and secure wiring retainer.
3. Connect battery positive cable.
4. Verify air bag indicator.
