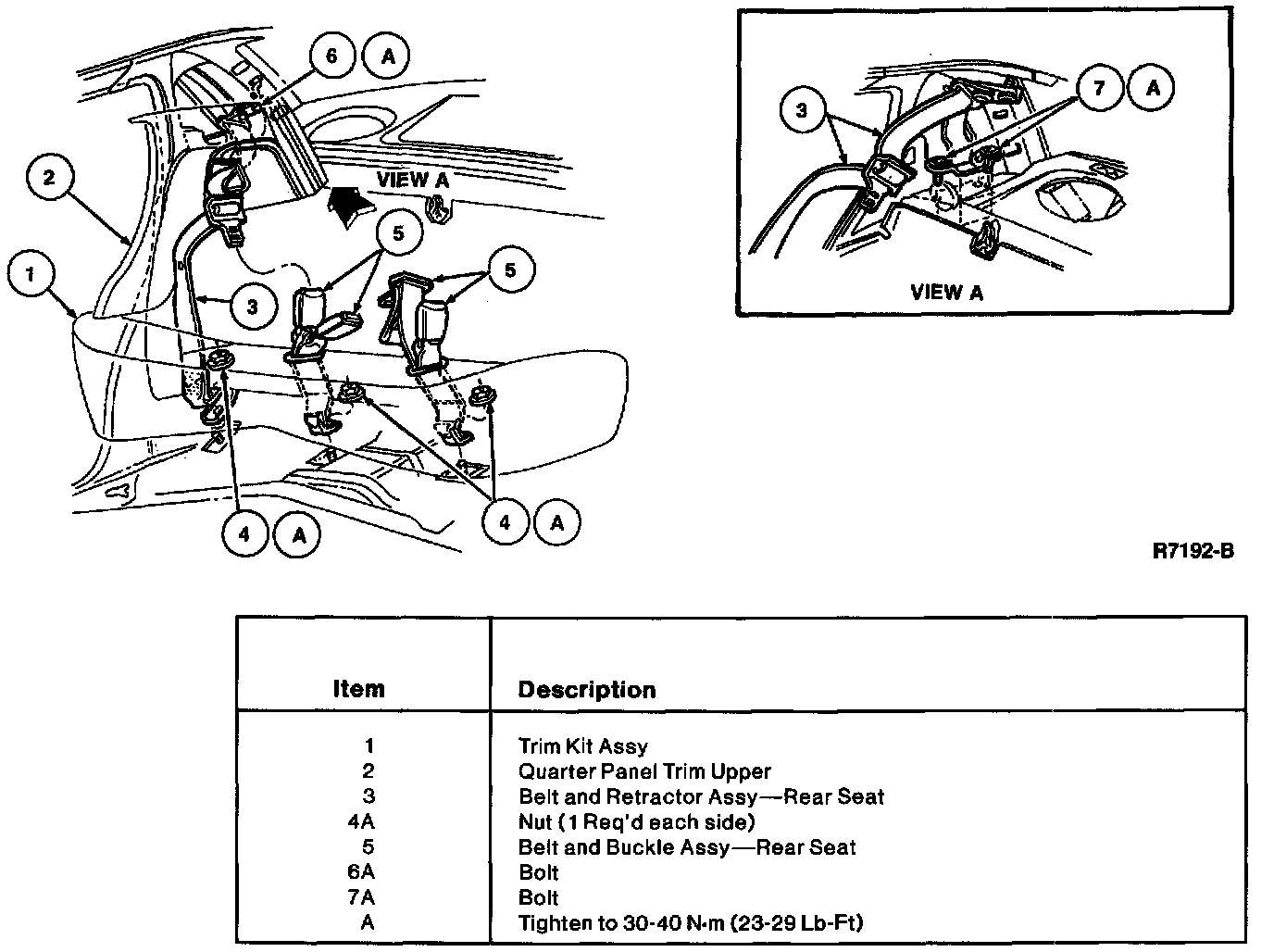

Rear Safety Belt Assembly

REMOVAL






1. Loosen rear seat cushion to gain access to buckle end attachments to the floorpan at the tunnel.
2. Remove buckle end retaining nuts.
3. Carefully remove inserts from seat cushion grommets and remove belts from seat.
4. Remove safety belt anchor retaining bolts.
5. Remove roof side rear trim panel assembly.
6. Remove belt opening grommet and pull belt with slip tongue through belt opening in the panel.
7. Remove retractor assembly retaining bolts.

INSTALLATION
1. To install, reverse Removal procedure.
2. Tighten all retaining nuts and bolts to 30-40 Nm (23-29 ft lbs).
