Home >> Mercury >> 1993 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Diagrams >> Pin-Out

Pin-Out

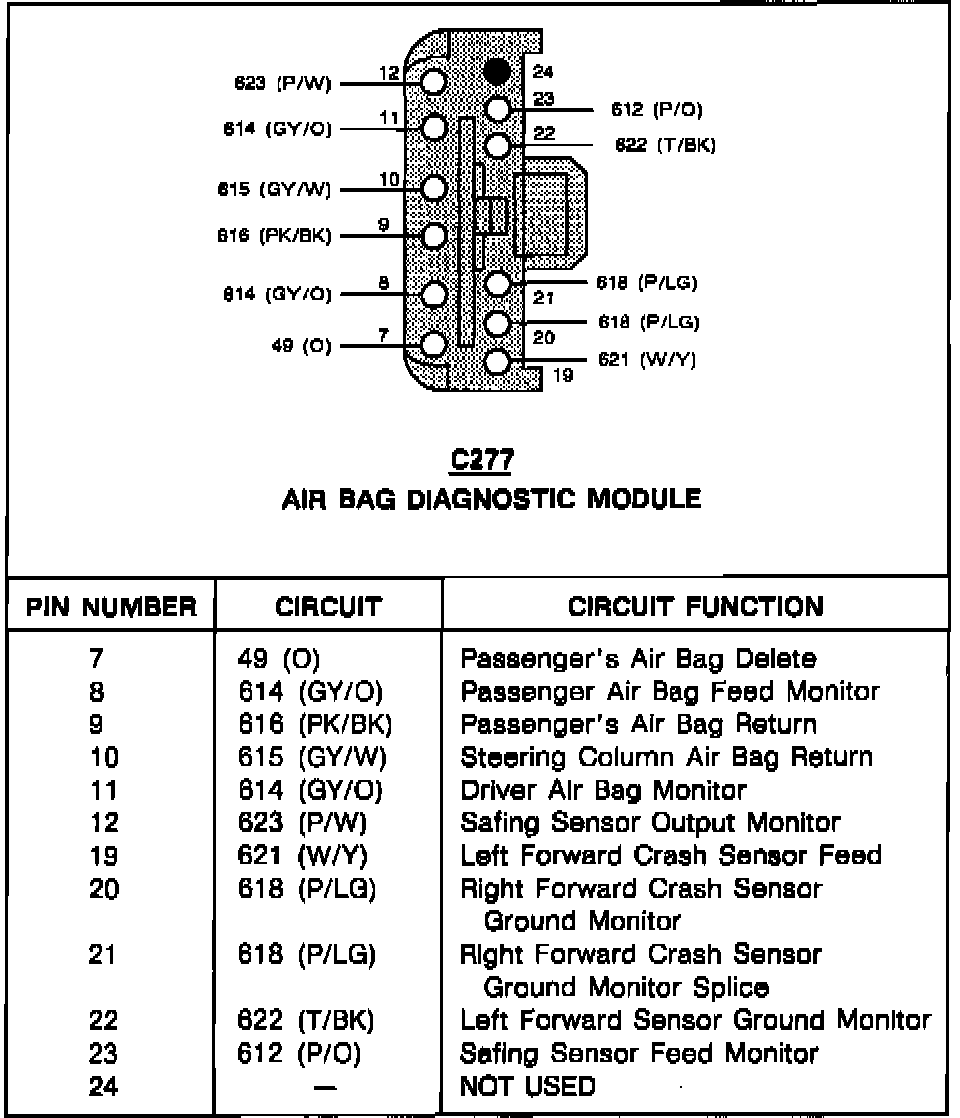

Air Bag Diagnostic Module:

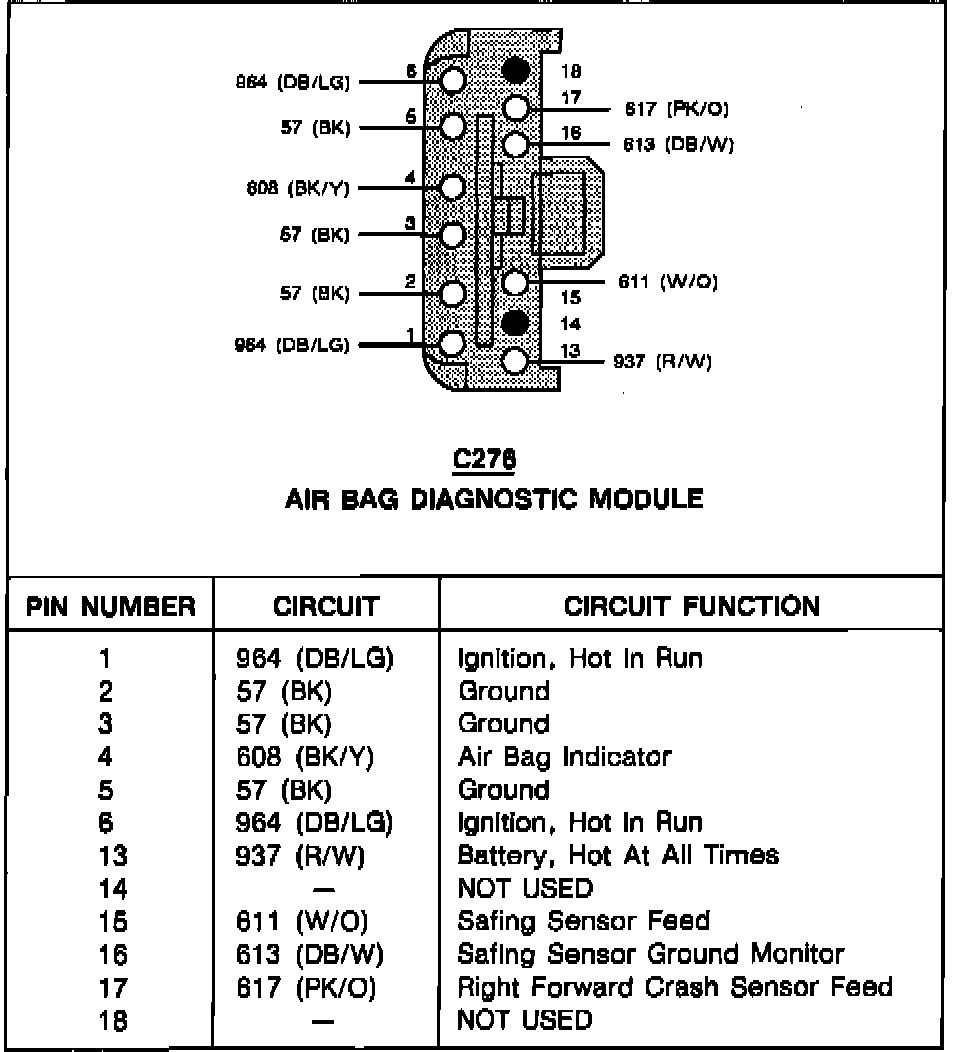

Air Bag Diagnostic Module:
