DTC 44: RH Primary Crash Sensor Not Mounted Properly
DIAGNOSTIC TROUBLE CODE 44RH Radiator Primary Crash Sensor Not Mounted To Vehicle Properly
Normal Operation
The diagnostic monitor measures the resistance between Pin 20 (Circuit 618, P/LG) and Pin 3 (diagnostic monitor reference ground). If the diagnostic monitor measures a difference of more than 2.0 ohms between Pin 20 and Pin 3, it will flash out Diagnostic Trouble Code 44.
Note that Circuit 618 (P/LG) is attached to the side of the RH radiator primary crash sensor case. In addition, the case is grounded to the vehicle. Note that Circuit 618 is spliced into a circuit going to Pin 21 of the diagnostic monitor.
Possible Causes
High resistance on Pin 20 (Circuit 618, P/LG) to ground can be caused by:
1. A poor connection due to loose mounting, dirt, or corrosion at the RH radiator primary crash sensor mounting location.
2. An open or damaged wire in Circuit 618 (P/LG) from Pin 20 of the diagnostic monitor harness connector to RH radiator primary crash sensor. Note that Circuit 618 is spliced into a wire going to Pin 21 of the diagnostic monitor. Also, Circuit 618 goes through an in-line connector before reaching the RH radiator sensor connector.
3. An open circuit inside RH radiator primary sensor.
Diagnostic Trouble Code 44 Electrical Schematic:

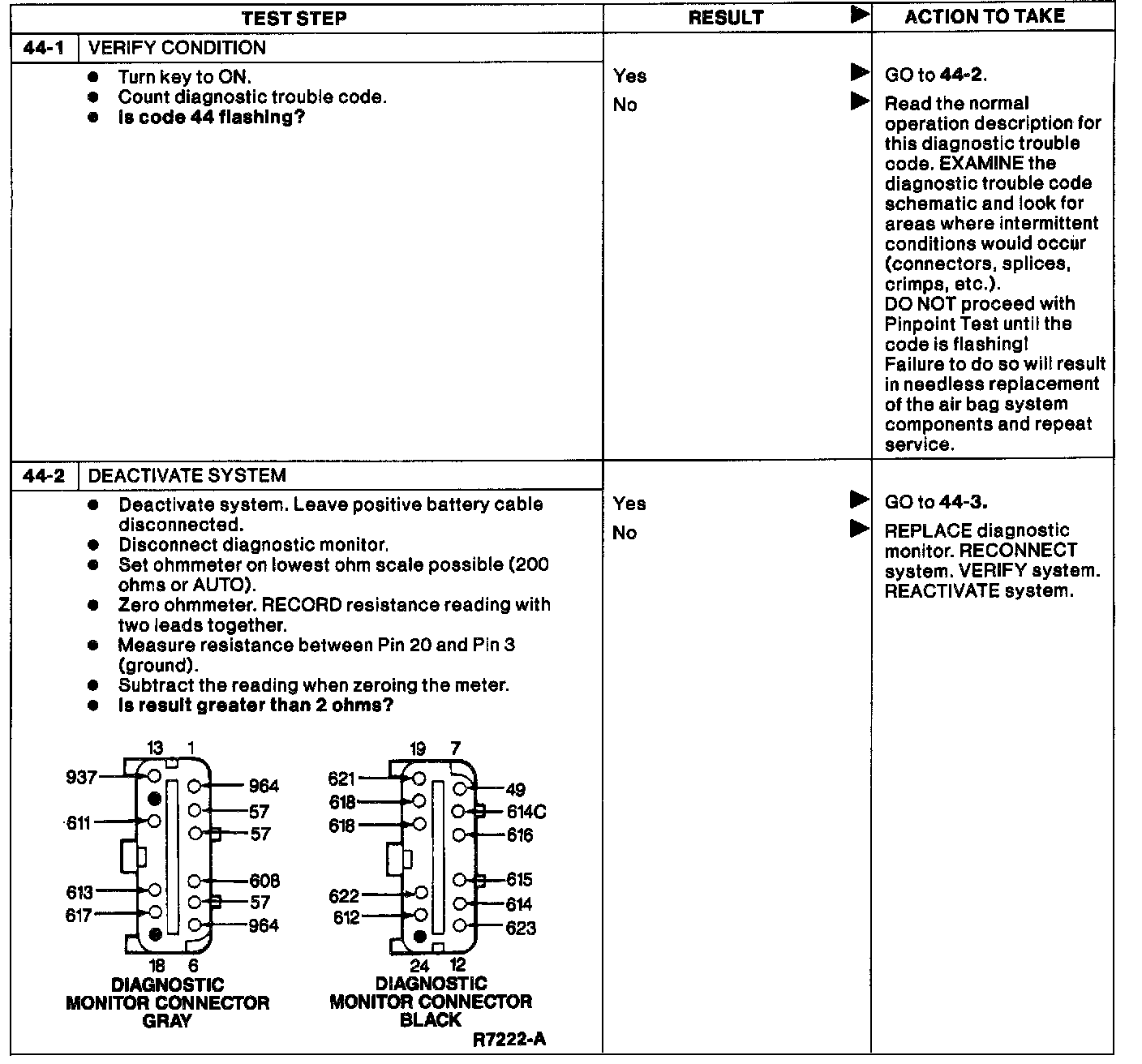

Pinpoint Tests 44-1 - 44-2:

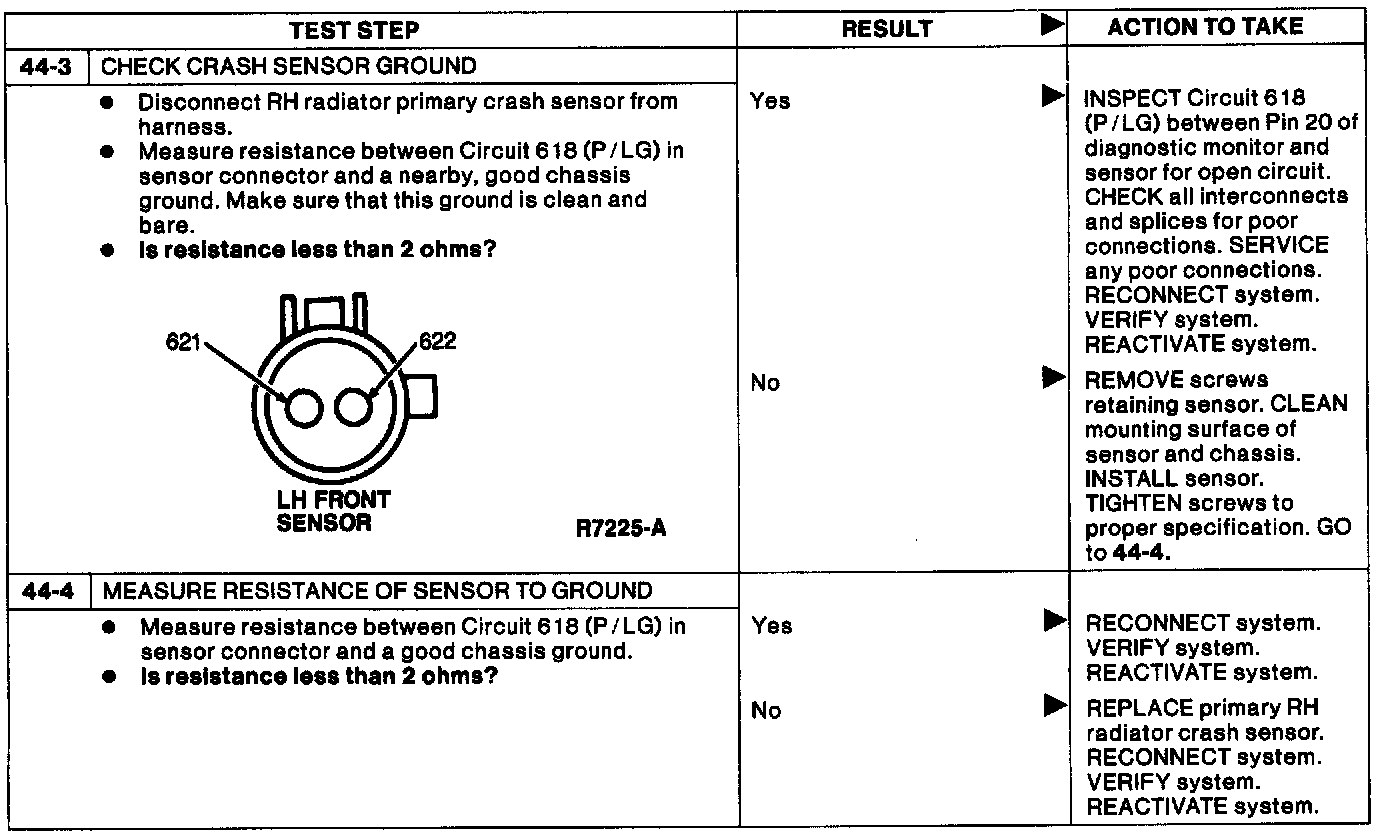

Pinpoint Tests 44-3 - 44-4:
