Compressor/Pump Relay: Service and Repair

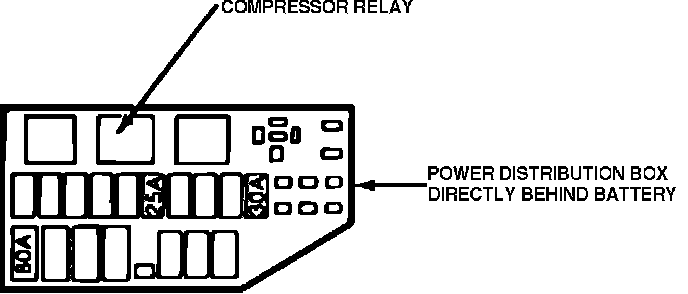

Fig. 24 Compressor Relay:

1. Disconnect battery ground cable.
2. Remove power distribution box cover.
3. Remove compressor relay, Fig. 24.
4. Reverse procedure to install.
