Home >> Mercury >> 1993 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Headlamp Control Module >> Diagrams >> Electrical Diagrams >> Without Auto-lamps

Without Auto-lamps

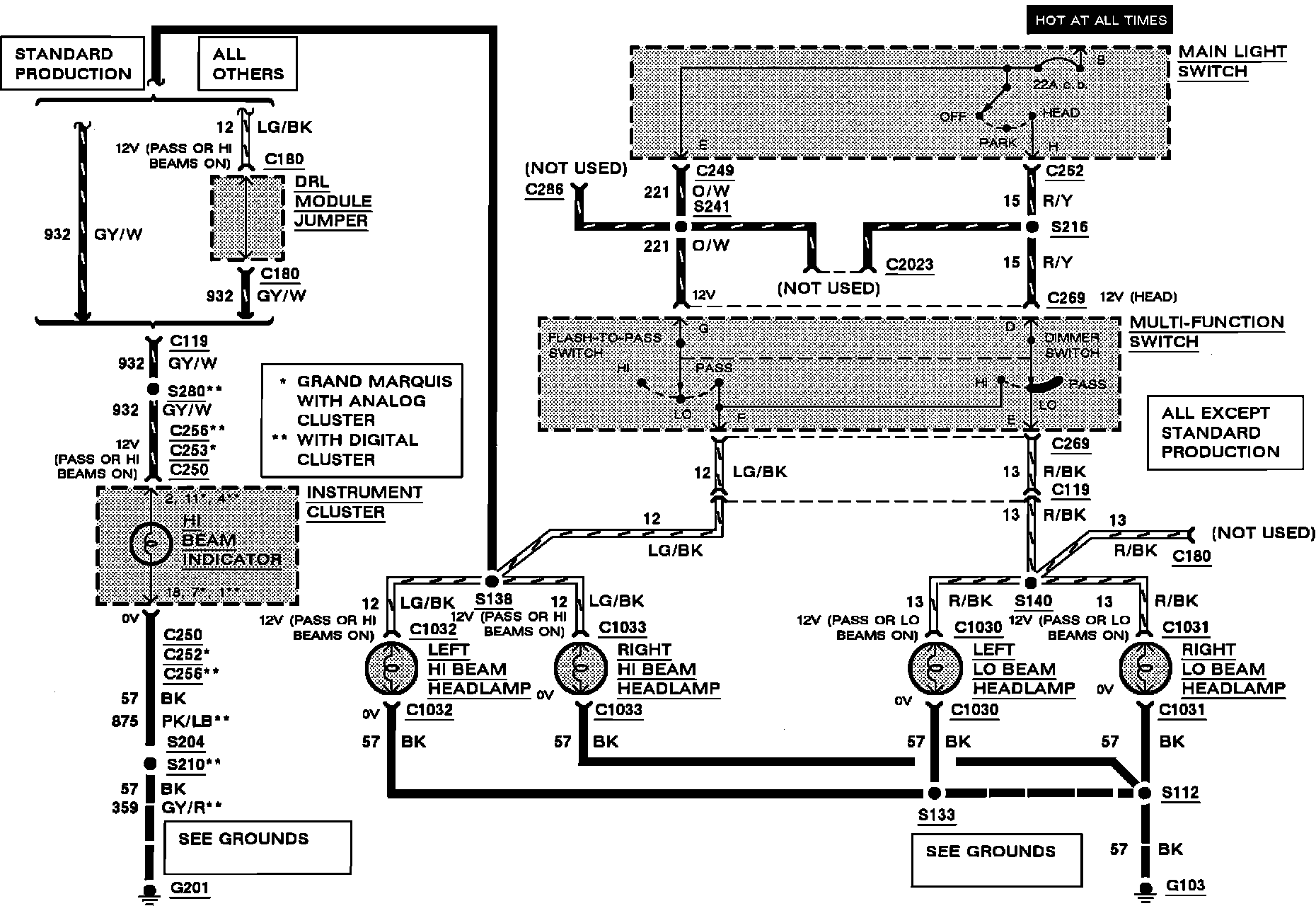

Headlamps (Without Automatic Headlamps):
