Pinpoint Test D: No Medium Or Low Blower Speeds
Pinpoint Test D: No Medium Or Low Blower Speeds
Test Condition:
Start engine, set control to MAX A/C, set blower switch to MED or LO. If there is no blower operation, proceed as follows:

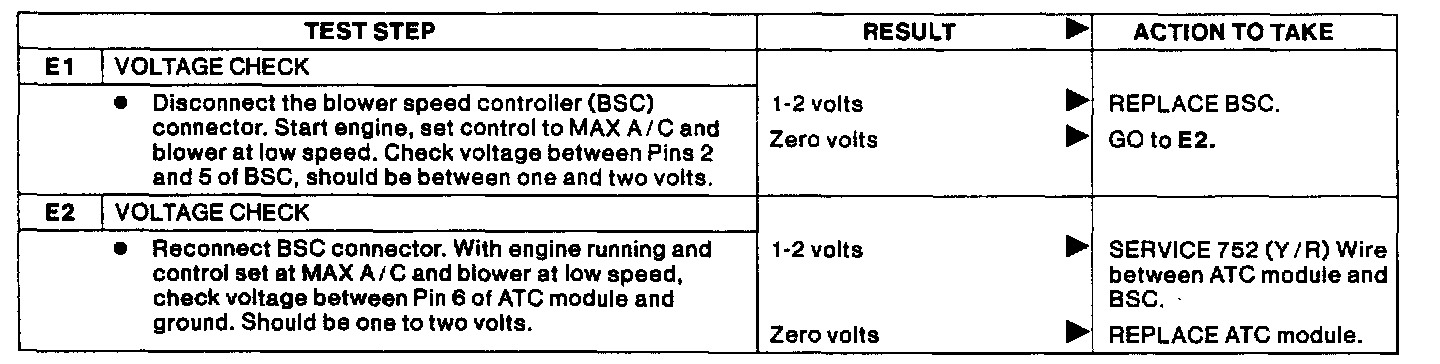

E1 - E2:
