Home >> Mercury >> 1993 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Control Module HVAC >> Testing and Inspection >> Pinpoint Test B: Blower Will Not Run

Pinpoint Test B: Blower Will Not Run

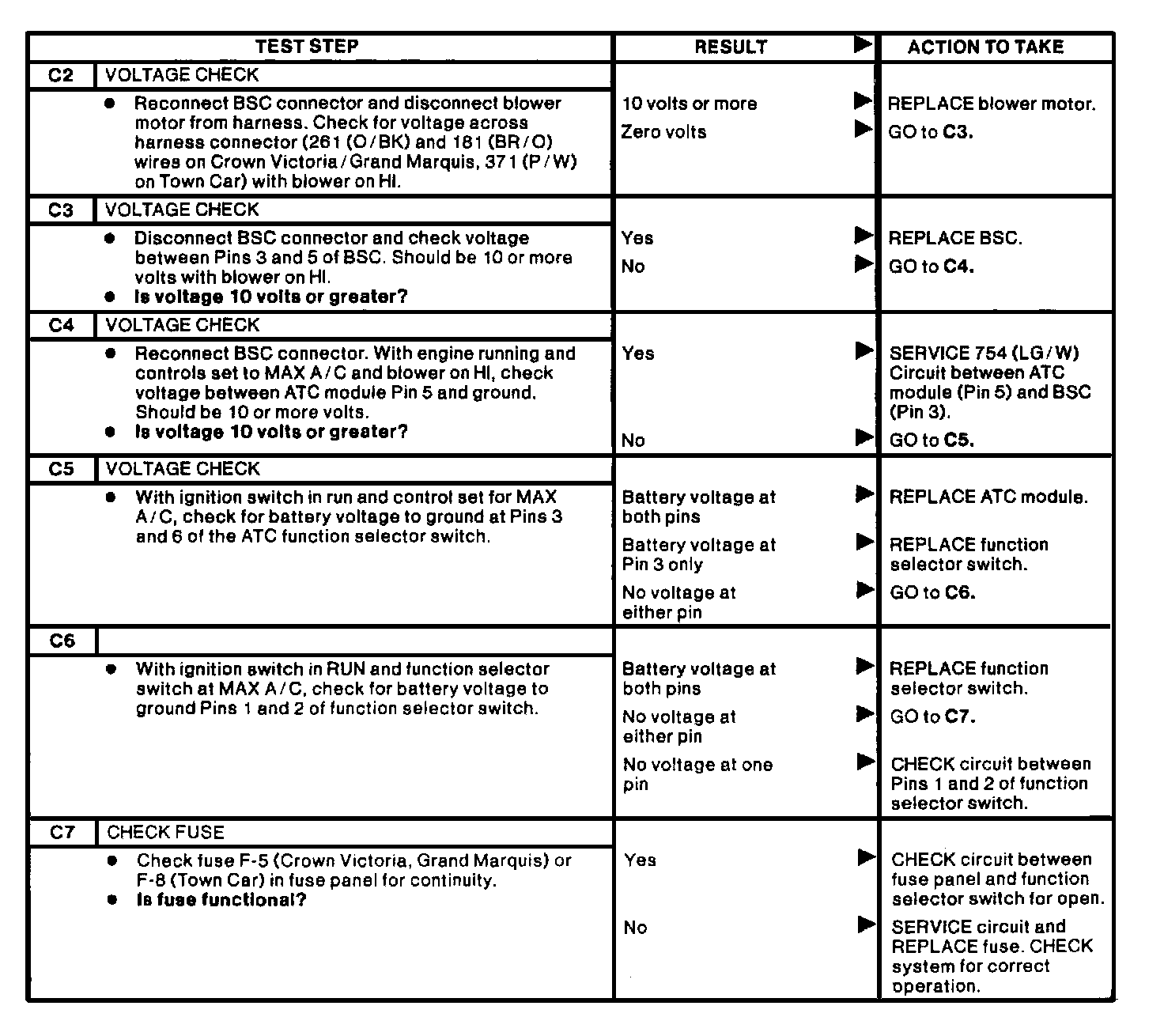

C2 - C7:

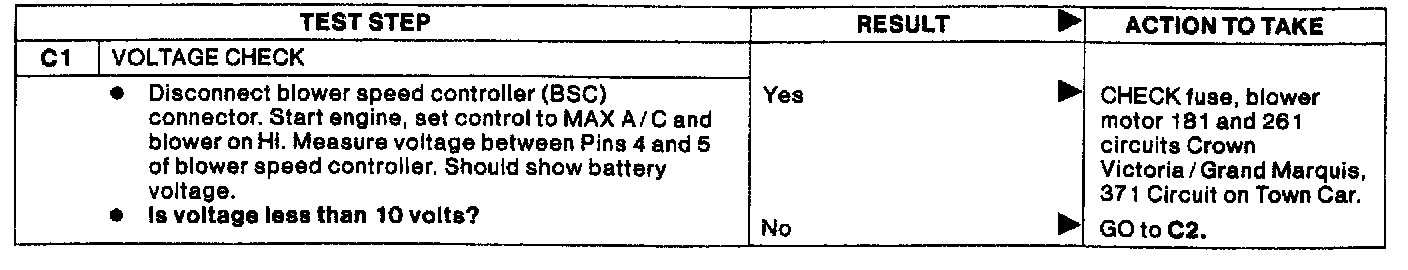

C1:
