Test Step 2

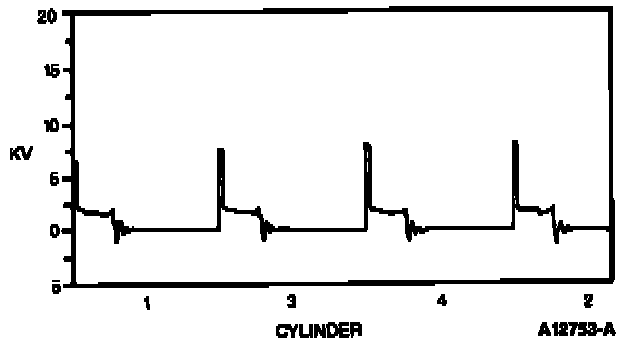

Average value of spark plug firing voltage: 15KV or less with evenness of spark plug firing voltage: 5 KV or less.

These are normal values for a properly operating ignition system.
