Home >> Mercury >> 1993 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Pump >> Testing and Inspection >> A16 - Check Powertrain Control Module Relay Ground

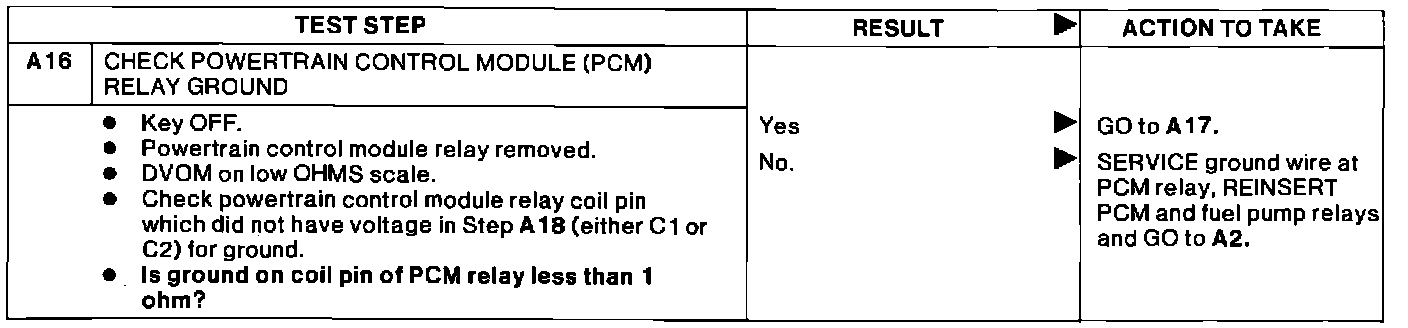

A16 - Check Powertrain Control Module Relay Ground

A16 - Check Powertrain Control Module Relay Ground:
