Home >> Mercury >> 1993 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> AC - EEC-IV No Start (Electronic Ignition-High Data Rate) >> AC8 - Isolate Opens In PIP Circuit In PCM

AC8 - Isolate Opens In PIP Circuit In PCM

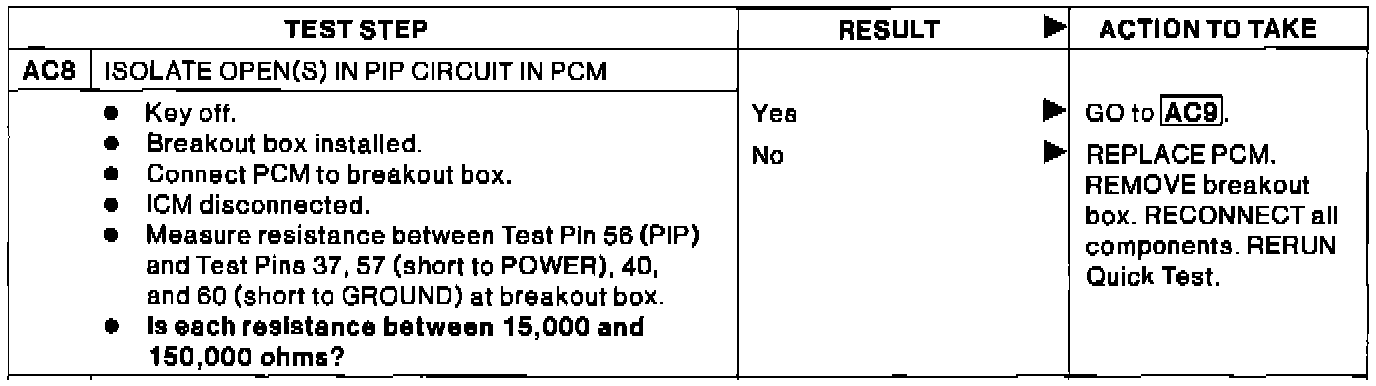

Pinpoint Test AC8:
