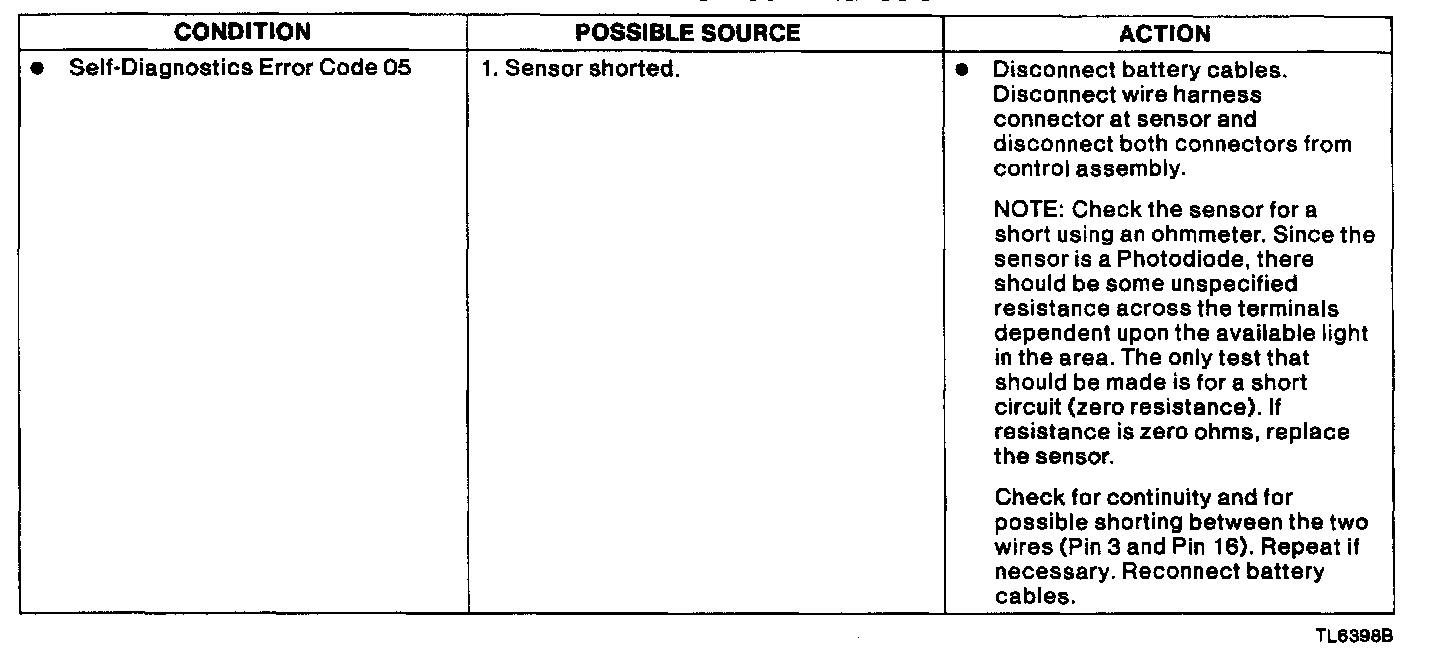

Sun Load Sensor
Sensor Resistance Table
APPROXIMATE TEMPERATURE /SENSOR RESISTANCE ACCEPTABLE RANGE
10°C to 20°C (50°F to 68°F) / 37K to 58K ohms
20°C to30°C (66°F to 86°F) / 24K to 37K ohms
30°C to 4°C (66°F to 104°F) / 16K to 24K ohms
Sensor Resistance Table
APPROXIMATE TEMPERATURE /SENSOR RESISTANCE ACCEPTABLE RANGE
10°C to 20°C (50°F to 68°F) / 37K to 58K ohms
20°C to30°C (66°F to 86°F) / 24K to 37K ohms
30°C to 4°C (66°F to 104°F) / 16K to 24K ohms
