Home >> Mercury >> 1993 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> Electronic Climate Control >> Blend Door

Blend Door

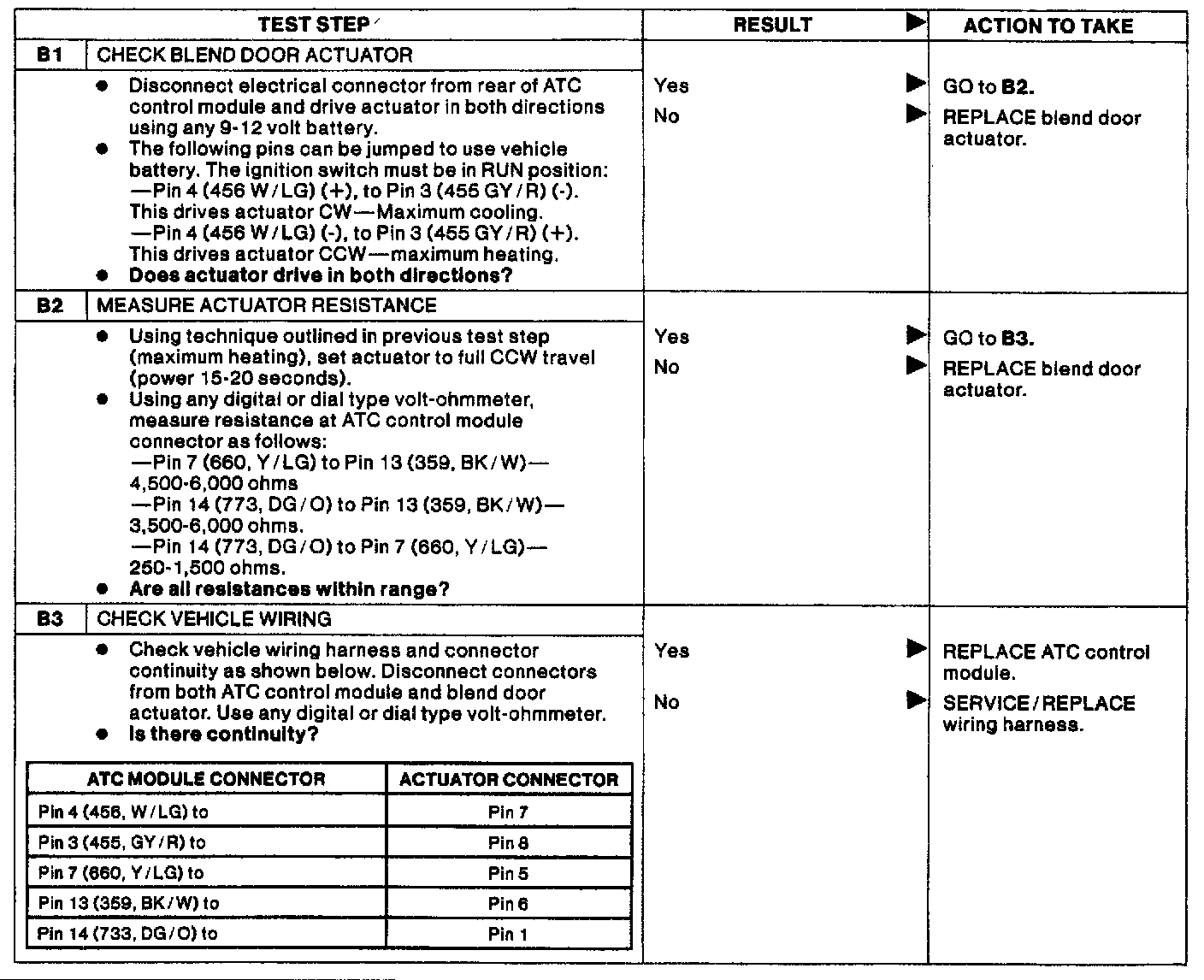

Blend Door Actuator Functional Test:
