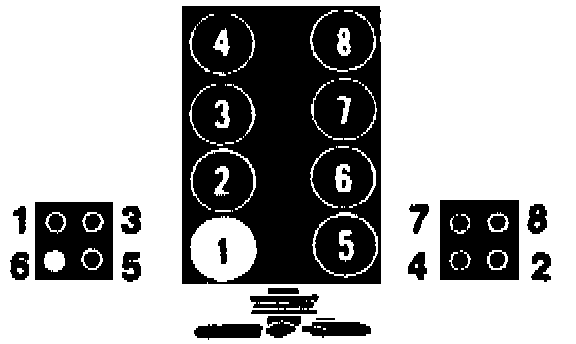

Number One Cylinder: Locations

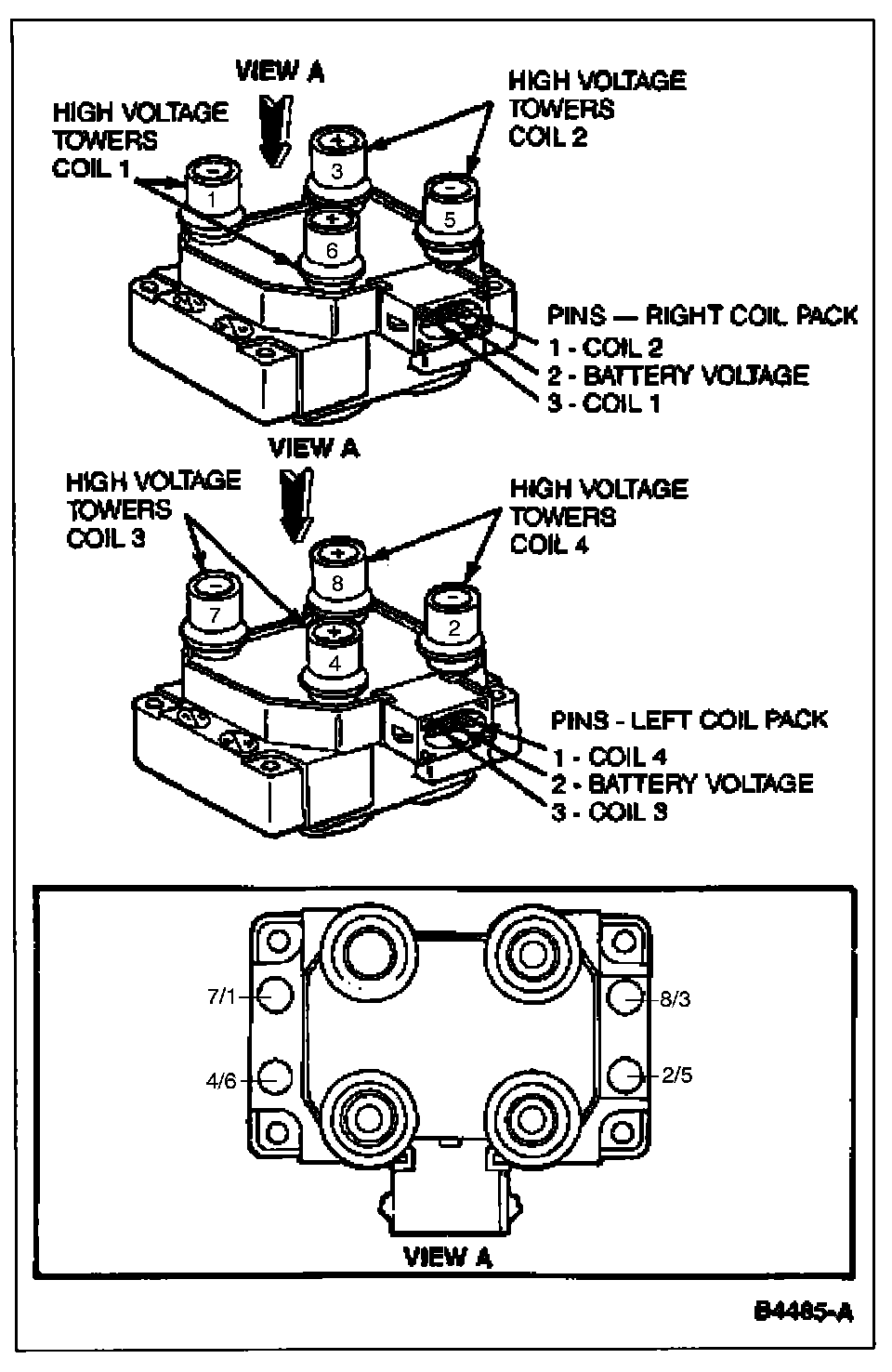

The ignition coils are mounted on ignition coil brackets which are attached to the engine front cover.





Firing Order: 1-3-7-2-6-5-4-8
