Home >> Mercury >> 1993 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Engine - Coolant Temperature Sensor/Switch >> Temperature Sensor (Gauge) >> Testing and Inspection >> Pinpoint Tests >> Test A1 - C2

Test A1 - C2

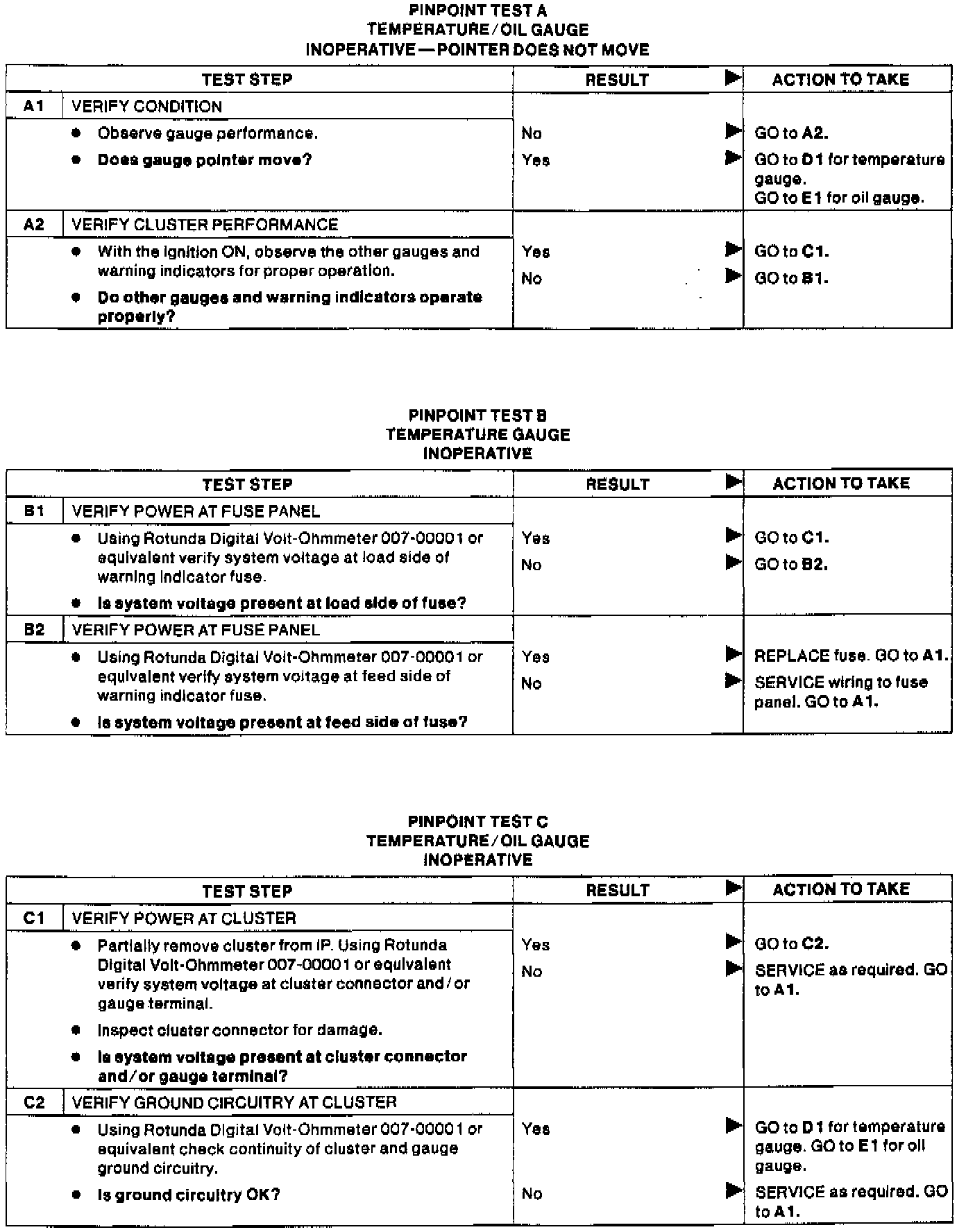

Fig. 9 Temperature/Oil Gauge Indicating System Diagnosis (Part 1 Of 2):
