Home >> Mercury >> 1993 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fusible Link >> Electronic Engine Control (EEC)

Electronic Engine Control (EEC)

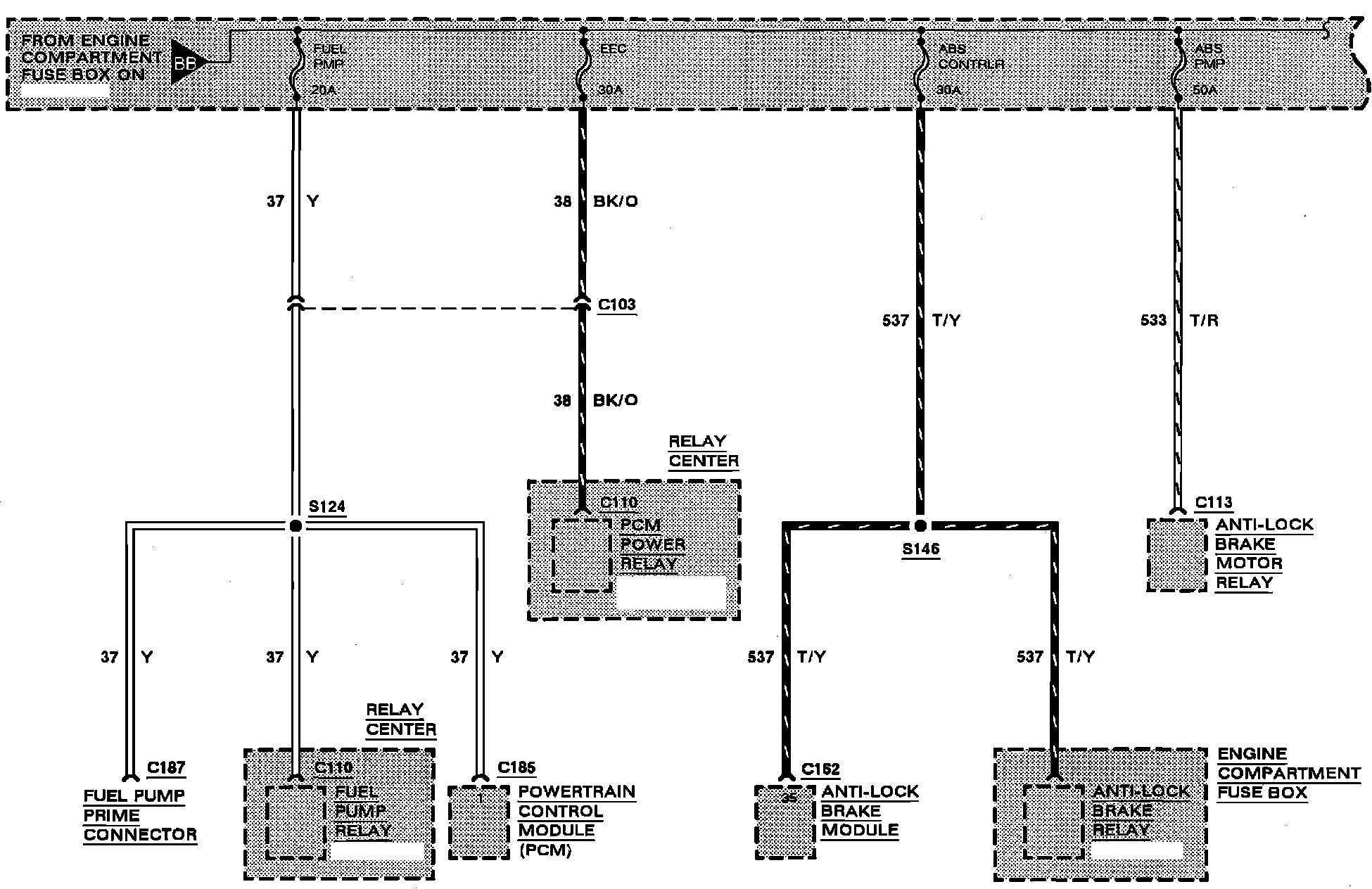

Power Distribution:
