Home >> Mercury >> 1993 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp >> Without Keyless Entry >> Part 2 of 4

Part 2 of 4

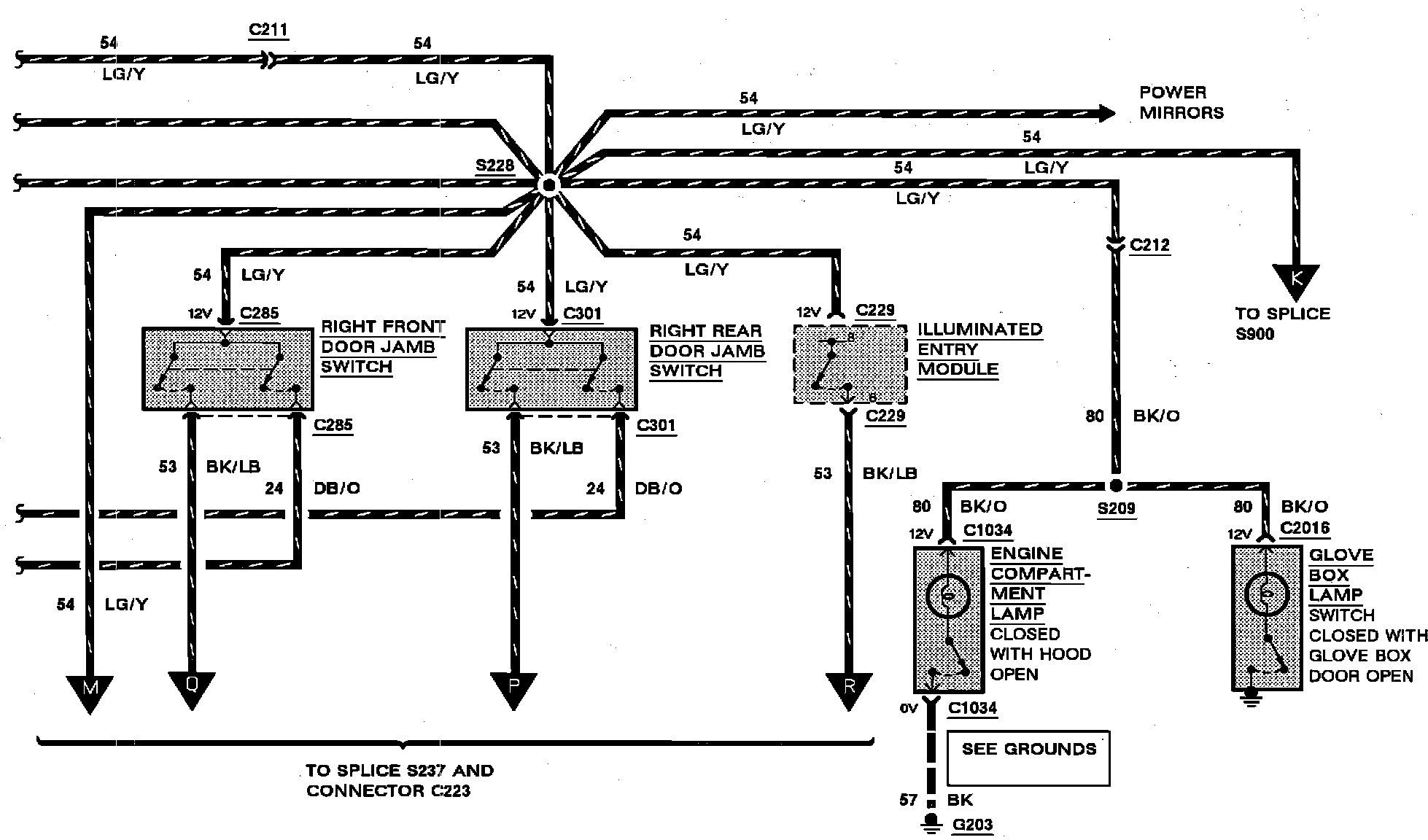

Courtesy Lamps (Without Remote Keyless Entry):
