Home >> Mercury >> 1993 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp >> With Keyless Entry >> Part 1 of 4

Part 1 of 4

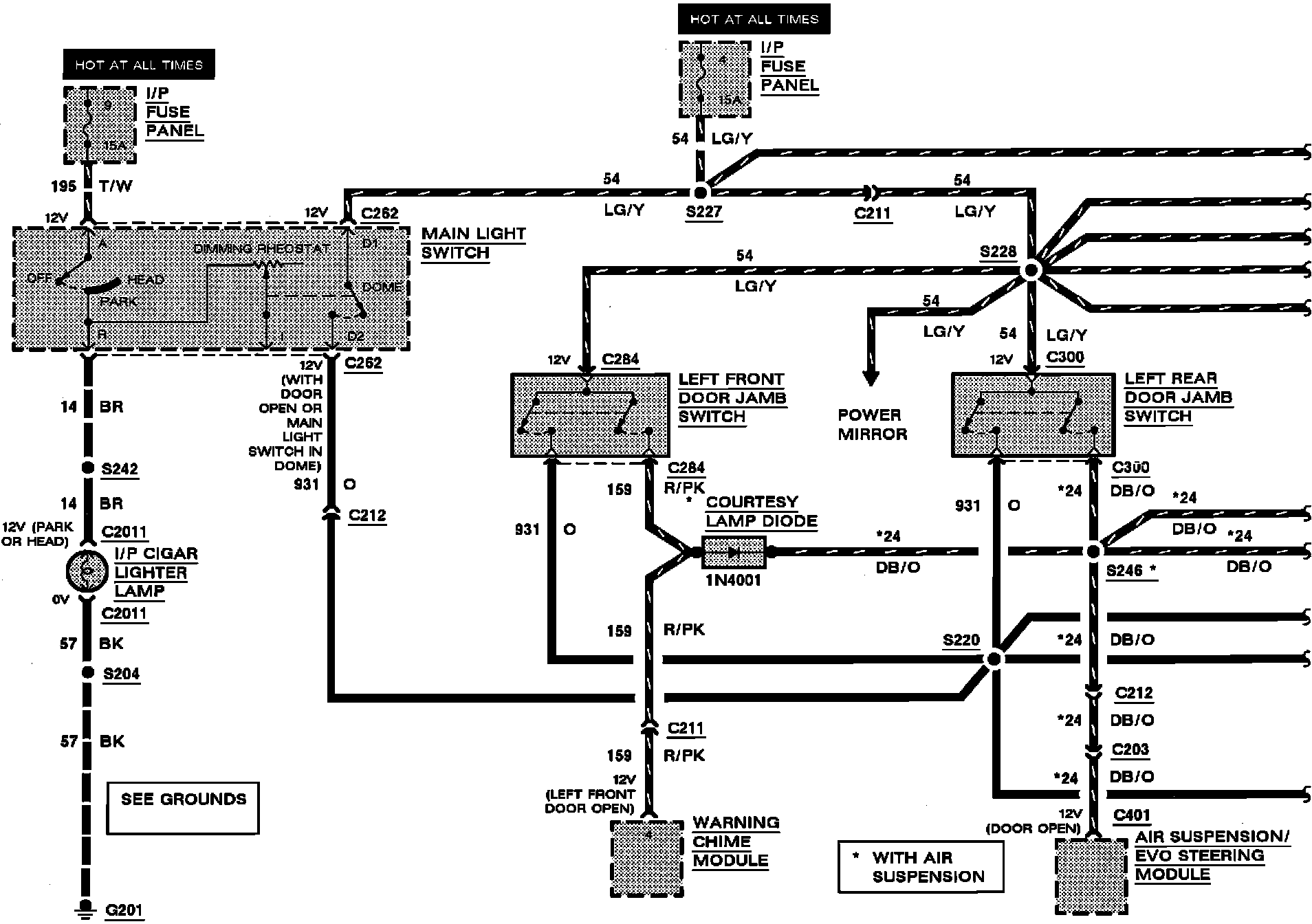

Courtesy Lamps (With Remote Keyless Entry):
